UI-3276LE
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 57.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.8"
- Resolution
- 3.17 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3276LE-C-HQ.pdf
- Data sheet 2
- UI-3276LE-M-GL.pdf
- 소비자가
- 별도문의

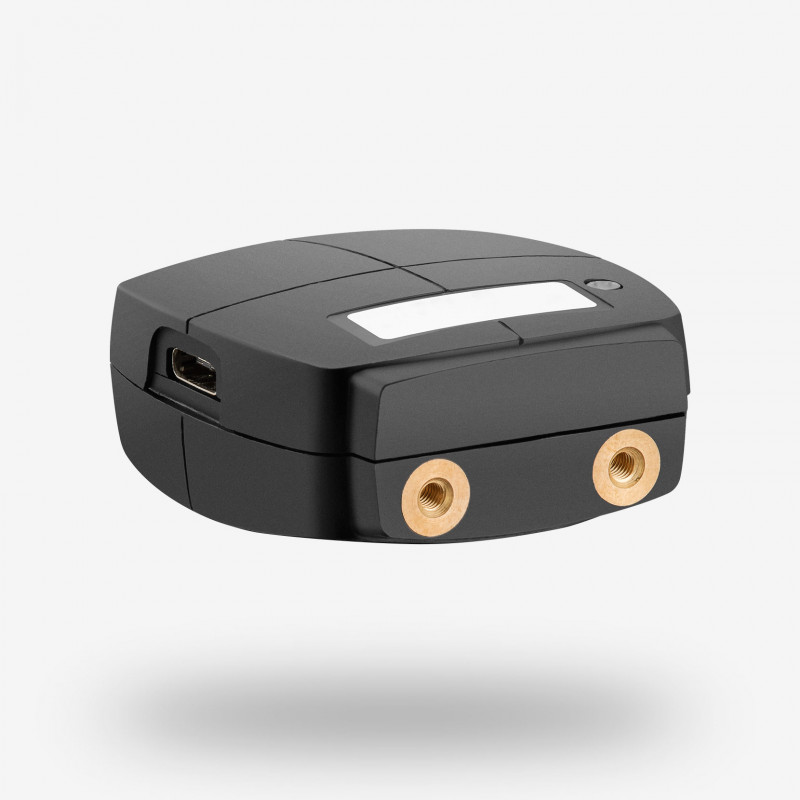

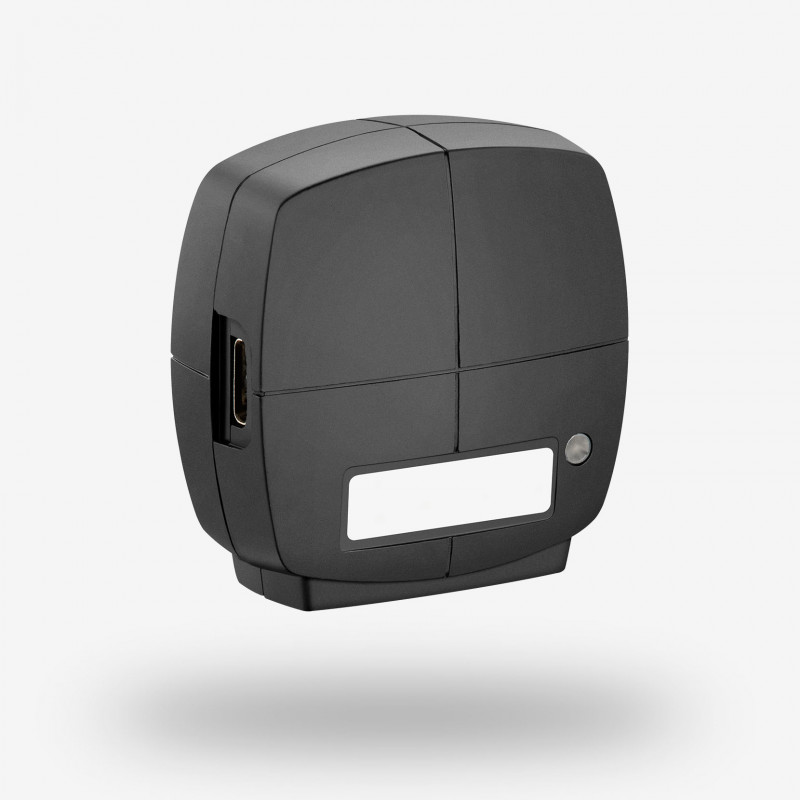

uEye LE
USB 3 5.0 Gbps, 1/1.8", Sony, 3.17 MPix, CMOS, 57.0 fps, IMX265, 2056 x 1542
The UI-3276LE USB 3 camera with Sony IMX265 area scan sensor represents a USB 3 camera with the best imaging sensor of the 3 MP pixel class. The 1/1.8" size of the global shutter CMOS sensor fits to a great range of lenses. The industrial camera delivers frame rates of up to 57 fps at full resolution (3.2 MP: 2056 x 1542 px), and 80 fps at Full HD resolution. Thus, the USB 3 camera is perfectly suitable for visualization tasks in machine vision applications or medical engineering.
The UI-3276LE USB 3 camera with S-mount lens holder is available as colour or monochrome version.
This housing variant allows the use of particularly small, low-cost S-mount (M12) lenses.
| Item number |
|
|---|---|
| Name | UI-3276LE |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 57.0 fps |
| Resolution (h x v) | 2056 x 1542 |
| Optical Area | 7.093 mm x 5.320 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.17 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | In development |
