UI-3280CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 36.0 fps
- Shutter
- Global Shutter
- Optical class
- 2/3"
- Resolution
- 5.04 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3280CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-3280CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
USB 3 5.0 Gbps, 2/3", Sony, 5.04 MPix, CMOS, 36.0 fps, IMX264, 2456 x 2054

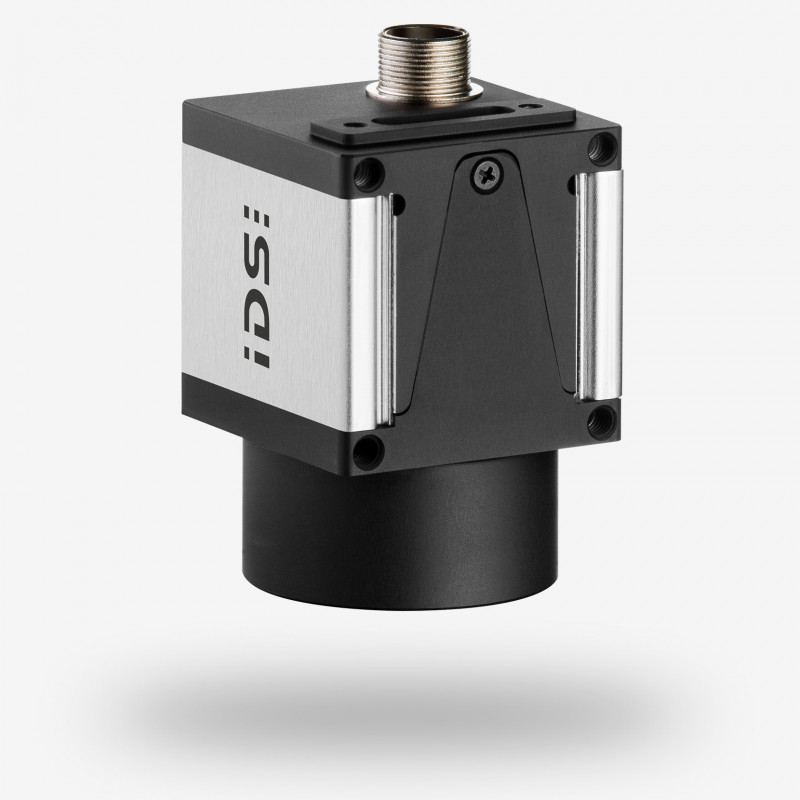

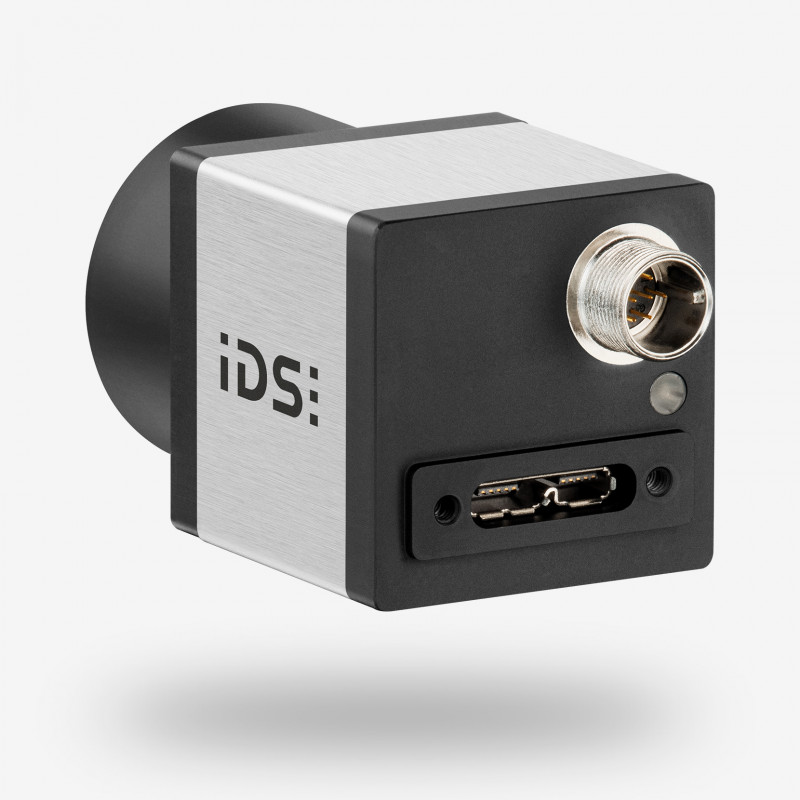

The UI-3280CP with Sony's 5 MP sensor IMX264 (2456 x 2054 px) sets a new standard in terms of light sensitivity, dynamic range and colour reproduction. The USB 3 industrial camera provides excellent image quality with extraordinarily low-noise performance - at frame rates up to 36 fps.
The global shutter CMOS sensor Sony IMX264 provides high resolution of 5 MP, which is perfectly suitable for applications under low-light conditions and in microscopy.
| Item number |
|
|---|---|
| Name | UI-3280CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 36.0 fps |
| Resolution (h x v) | 2456 x 2054 |
| Optical Area | 8.473 mm x 7.086 mm |
| Shutter | Global Shutter |
| Optical class | 2/3" |
| Resolution | 5.04 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
