UI-3370CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 80.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1"
- Resolution
- 4.19 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3370CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-3370CP-M-GL_Rev_2.pdf
- Data sheet 3
- UI-3370CP-NIR-GL_Rev_2.pdf
- 소비자가
- 별도문의

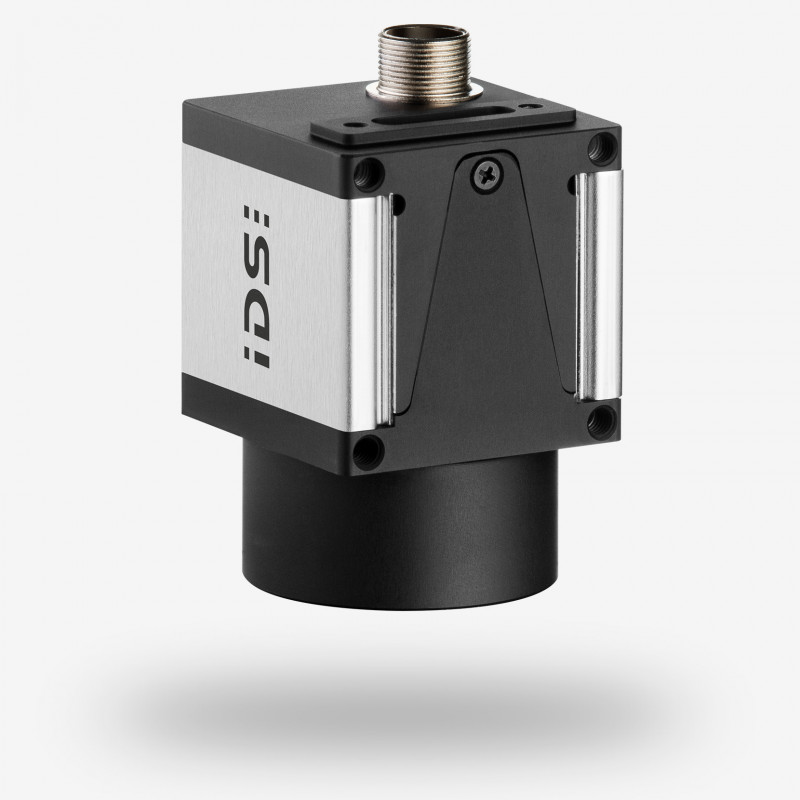

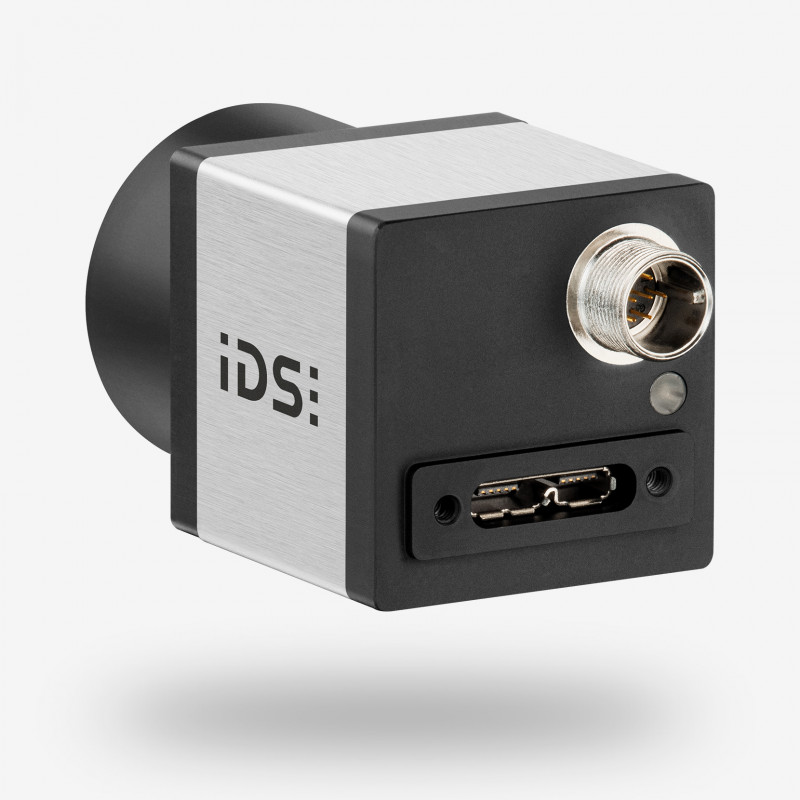

uEye CP
USB 3 5.0 Gbps, 1", ams/CMOSIS, 4.19 MPix, CMOS, 80.0 fps, CMV4000, 2048 x 2048
The USB 3 industrial camera UI-3370CP Rev. 2 is equipped with the sensitive, fast 4 megapixel CMOS sensor CMV4000 from ams/CMOSIS. The global shutter sensor offers a resolution of 2048 x 2048 pixels at a frame rate of 80.0 fps
Due to the huge optical format of 1", the square sensor offers large pixels (5.5 μm) and is light sensitive with a low noise level.
| Item number |
|
|---|---|
| Name | UI-3370CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ams/CMOSIS |
| Frame rate @ resolution max. | 80.0 fps |
| Resolution (h x v) | 2048 x 2048 |
| Optical Area | 11.264 mm x 11.264 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 4.19 MPix |
| Pixel size | 5.50 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
