UI-3370SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 80.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 4.19 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3370SE-C-HQ.pdf
- Data sheet 2
- UI-3370SE-M-GL.pdf
- 소비자가
- 별도문의
uEye SE
USB 3 5.0 Gbps, 1", ams/CMOSIS, 4.19 MPix, CMOS, 80.0 fps, CMV4000, 2048 x 2048

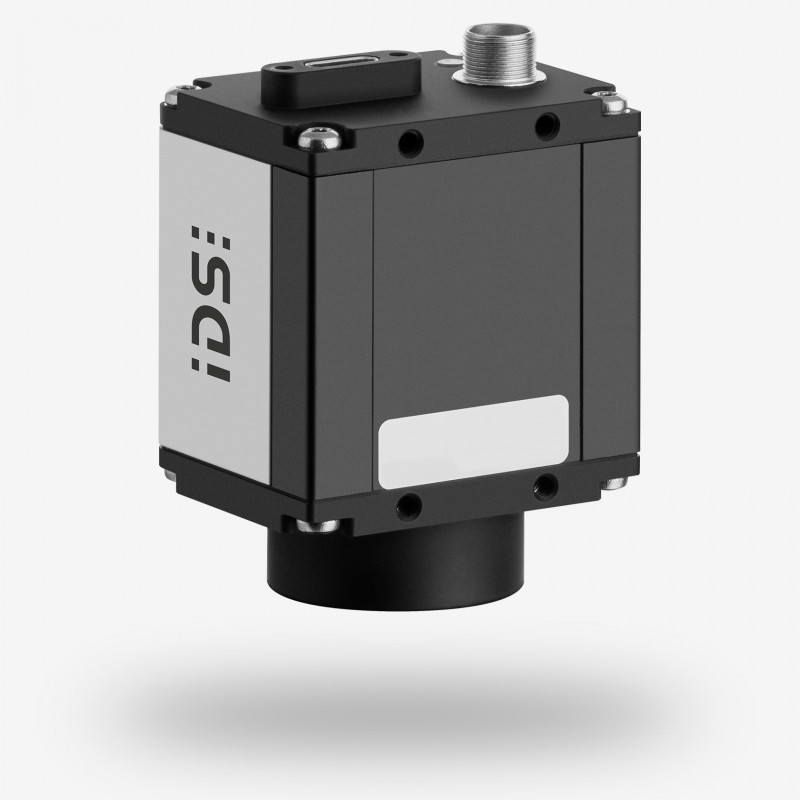

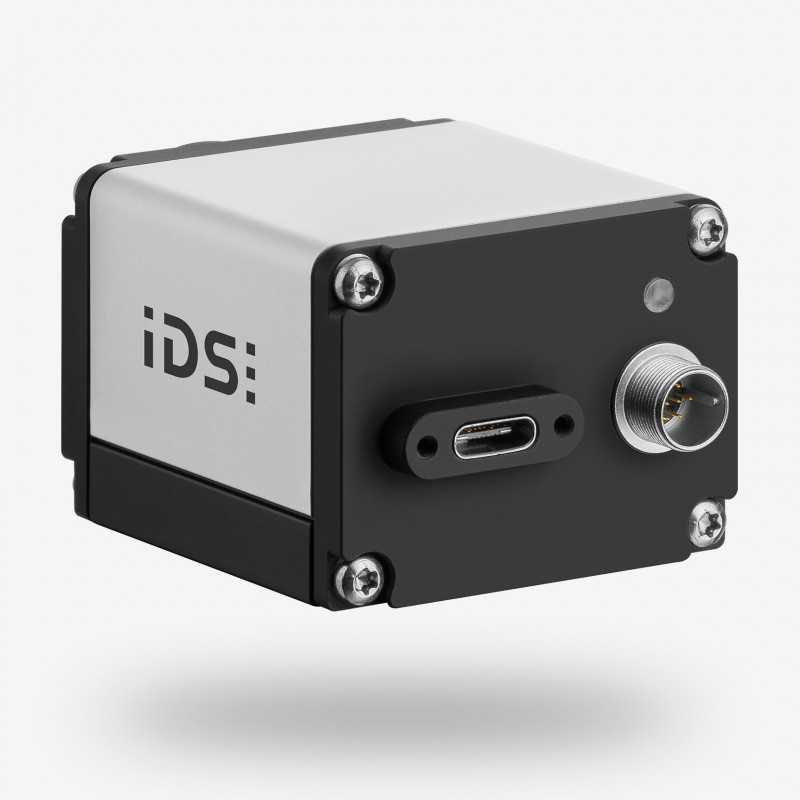

The USB 3 industrial camera UI-3370SE features the highly sensitive 4.19 MPix global shutter CMOS sensor CMV4000 from ams/CMOSIS. The sensor is not only distinguished by its square format with a maximum resolution of 2048 x 2048 pixels, but is also particularly light-sensitive thanks to a pixel size of 5.5 μm. Fixed-pattern noise and hiss are significantly reduced by the special pixel architecture.
The sensor also has a large dynamic range and its pipelining feature ensures that further exposure is possible while the sensor data is being read out. This function reduces motion blur and ensures fast processes, making the UI-3370SE a very helpful device e.g. for traffic monitoring or high-speed inspection.
Item number |
|
---|---|
Name | UI-3370SE |
Camera family | SE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | ams/CMOSIS |
Frame rate @ resolution max. | 80.0 fps |
Resolution (h x v) | 2048 x 2048 |
Optical Area | 11.264 mm x 11.264 mm |
Shutter | Global Shutter |
Optical class | 1" |
Resolution | 4.19 MPix |
Pixel size | 5.50 μm |
IP code | IP30 |
Product Life Cycle | Series |
