UI-3372SE
- Camera family
- SE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 80.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 4.19 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3372SE-C.pdf
- Data sheet 2
- UI-3372SE-M.pdf
- 소비자가
- 별도문의
The USB 3 industrial camera UI-3372SE features the highly sensitive 4.19 MPix global shutter CMOS sensor CMV4000 from ams/CMOSIS. The sensor is not only distinguished by its square format with a maximum resolution of 2048 x 2048 pixels, but is also particularly light-sensitive thanks to a pixel size of 5.5 μm. Fixed-pattern noise and hiss are significantly reduced by the special pixel architecture. The sensor also has a large dynamic range and its pipelining feature ensures that further exposure is possible while the sensor data is being read out.
This function reduces motion blur and ensures fast processes, making the UI-3372SE a very helpful device e.g. for traffic monitoring or high-speed inspection.

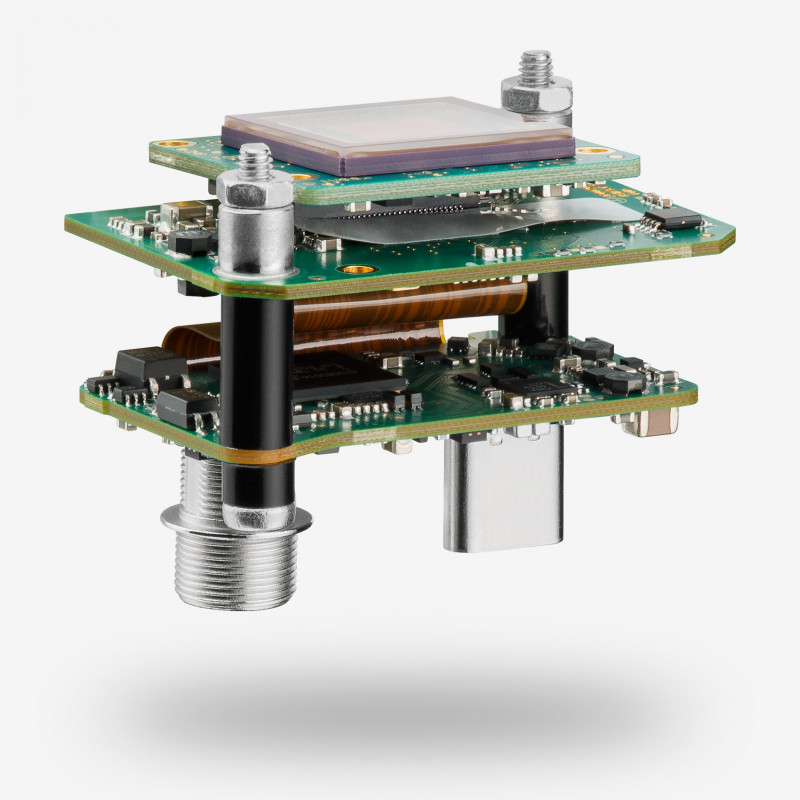

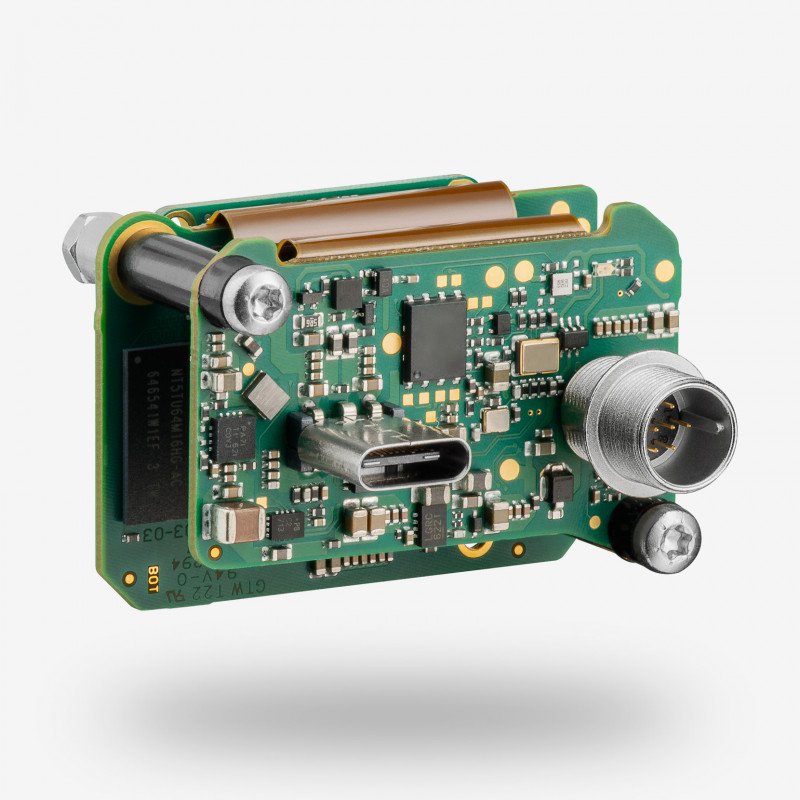

The UI-3372SE board level camera without lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | UI-3372SE |
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ams/CMOSIS |
| Frame rate @ resolution max. | 80.0 fps |
| Resolution (h x v) | 2048 x 2048 |
| Optical Area | 11.264 mm x 11.264 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 4.19 MPix |
| Pixel size | 5.50 μm |
| IP code | No |
| Product Life Cycle | Series |
