UI-3590CP Rev. 2
- Camera family
- CP
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 21.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2"
- Resolution
- 18.10 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3590CP-C-HQ_Rev_2.pdf
- 소비자가
- 별도문의

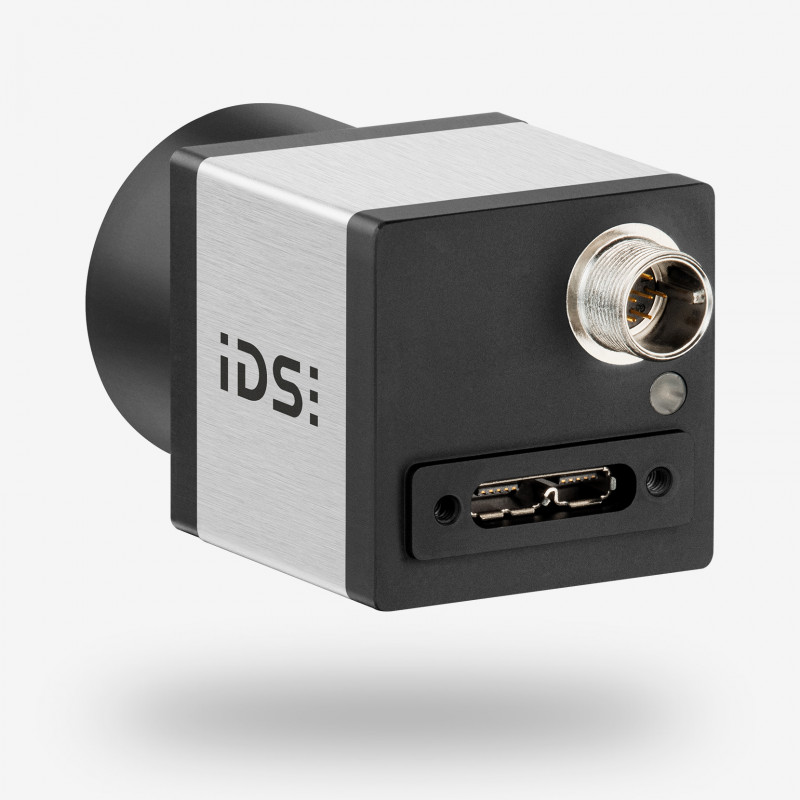

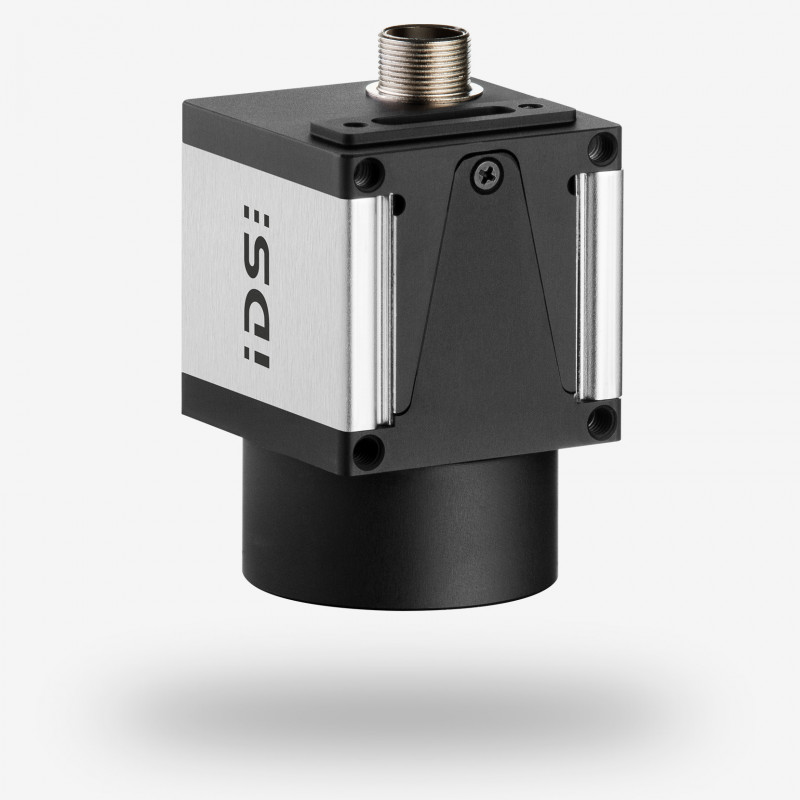

uEye CP
USB 3 5.0 Gbps, 1/2", ON Semiconductor, 18.10 MPix, CMOS, 21.0 fps, AR1820HS, 4912 x 3684
The UI-3590CP with rolling shutter CMOS sensor AR1820HSSC00SHEA0 by ON Semiconductor provides detailed Full HD videos (1920 x 1080) with a frame rate of 90 fps. The 1/2" CMOS colour sensor offers extremely high resolutions: 18 MP (4912 x 3684, 21 fps), 4K Cinema (4096 x 2304, 38 fps), and Ultra HD (3840 x 2160, 40 fps). Thanks to the latest BSI pixel technology it is very light-sensitive and therefore perfectly suitable for visualisation applications i.e. microscopy, barcode reading or motion analysis.
Due to the high sensor performance this camera model is not supported in the USB 2.0 mode.
This camera model will be supported beginning with IDS Software Suite 4.70.
| Item number |
|
|---|---|
| Name | UI-3590CP Rev. 2 |
| Camera family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 21.0 fps |
| Resolution (h x v) | 4912 x 3684 |
| Optical Area | 6.140 mm x 4.605 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/2" |
| Resolution | 18.10 MPix |
| Pixel size | 1.25 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
