UI-3591LE AF Rev. 2
- Camera family
- Rolling Shutter
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 20.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2"
- Resolution
- 18.10 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3591LE-C-HQ-AF_Rev_2.pdf
- 소비자가
- 별도문의

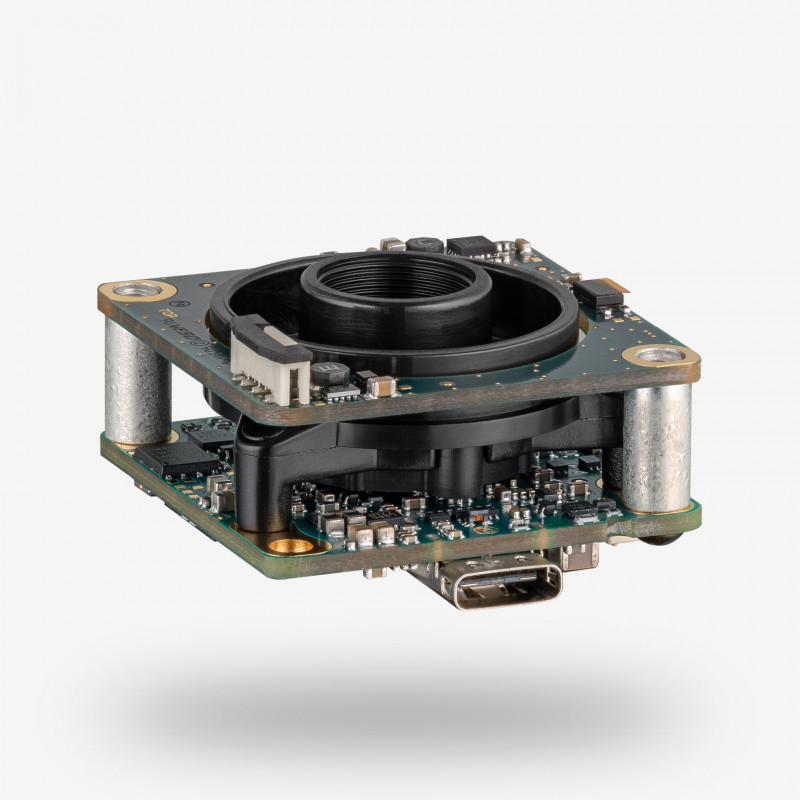

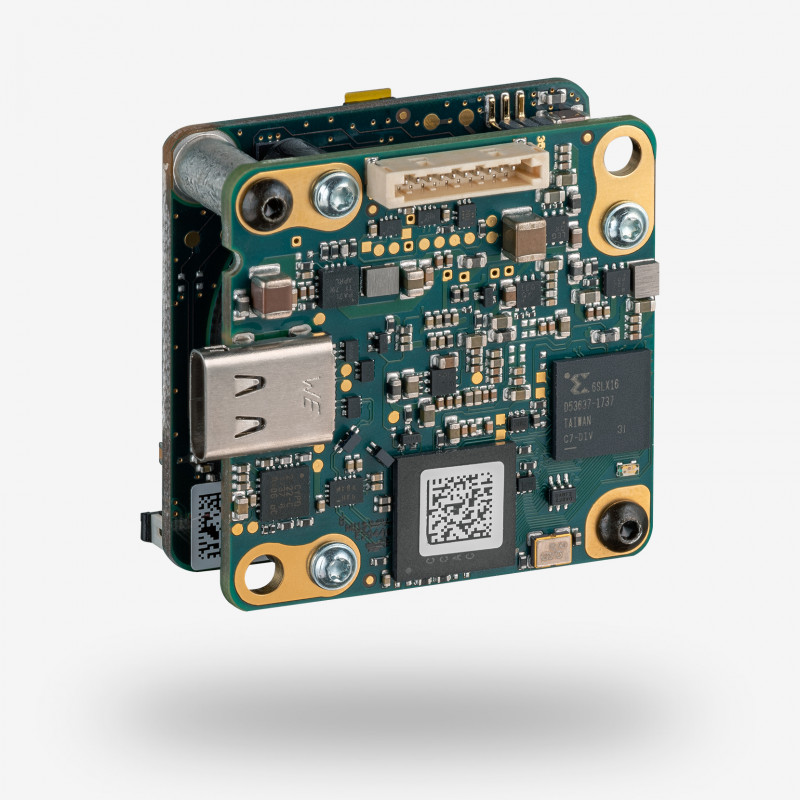

The USB 3 board level camera UI-3591LE AF Rev. 2 with 1/2" rolling shutter CMOS colour sensor from ON Semiconductor offers not only an extremely high resolution of 18.10 MPix (4912 x 3684, 20.0 fps), 4K Cinema (4096 x 2304, 38 fps) and Ultra HD (3840 x 2160, 40 fps), but also the possibility of focusing liquid lenses conveniently via the camera using software. The autofocus can be triggered very easily by software, can be individually configured to suit the application and ensures perfectly sharp images in an instant.
The extremely light-sensitive board level camera captures the smallest details and is ideal for capturing images in variable object distances and changing light conditions. Thanks to its compact dimensions and the twist-proof USB Type-C connector, it can be easily integrated into any image processing system. The camera also enables USB power delivery. Due to the high sensor performance, this camera is not supported in USB 2.0 mode
Item number |
|
---|---|
Name | UI-3591LE AF Rev. 2 |
Camera family | LE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | ON Semiconductor |
Frame rate @ resolution max. | 20.0 fps |
Resolution (h x v) | 4912 x 3684 |
Optical Area | 6.140 mm x 4.605 mm |
Shutter | Rolling Shutter |
Optical class | 1/2" |
Resolution | 18.10 MPix |
Pixel size | 1.25 μm |
IP code | No |
Product Life Cycle | Series |
