UI-3594LE Rev. 2
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 20.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2"
- Resolution
- 18.10 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3594LE-C-HQ_Rev_2.pdf
- 소비자가
- 별도문의

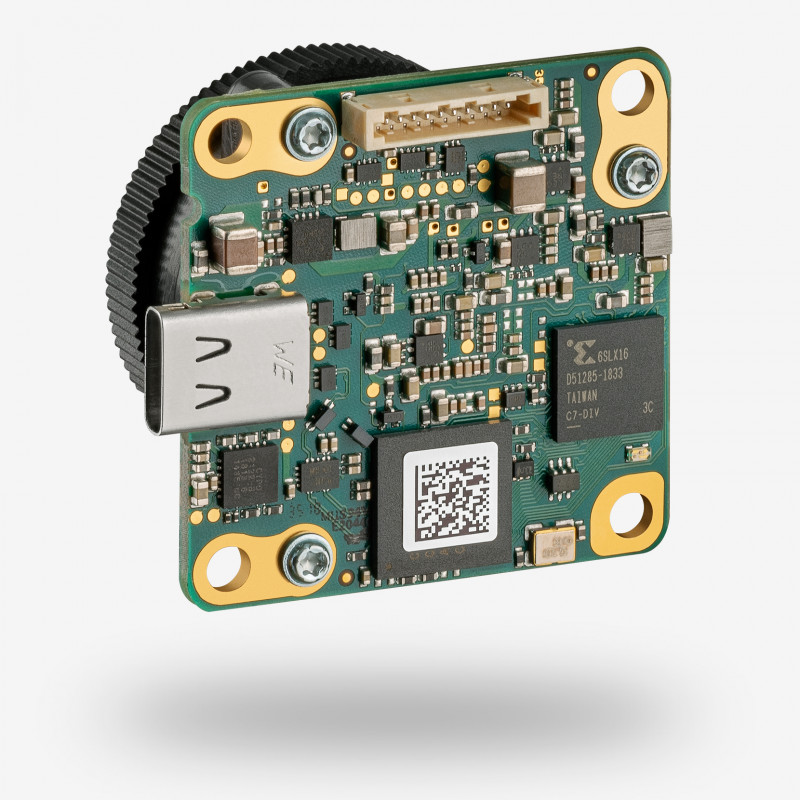

The USB 3 board level camera UI-3594LE Rev. 2 with 1/2" rolling shutter CMOS colour sensor from ON Semiconductor offers extremely high resolution of 18.10 MPix (4912 x 3684, 20.0 fps), 4K Cinema (4096 x 2304, 38 fps) and Ultra HD (3840 x 2160, 40 fps). The extremely light-sensitive single-board camera captures the smallest details and is ideal for capturing images in variable object distances and changing light conditions. Thanks to its compact dimensions and the twist-proof USB Type-C connector, it can be easily integrated into any image processing system. The camera also enables USB power delivery. Due to the high sensor performance, this camera is not supported in USB 2.0 mode

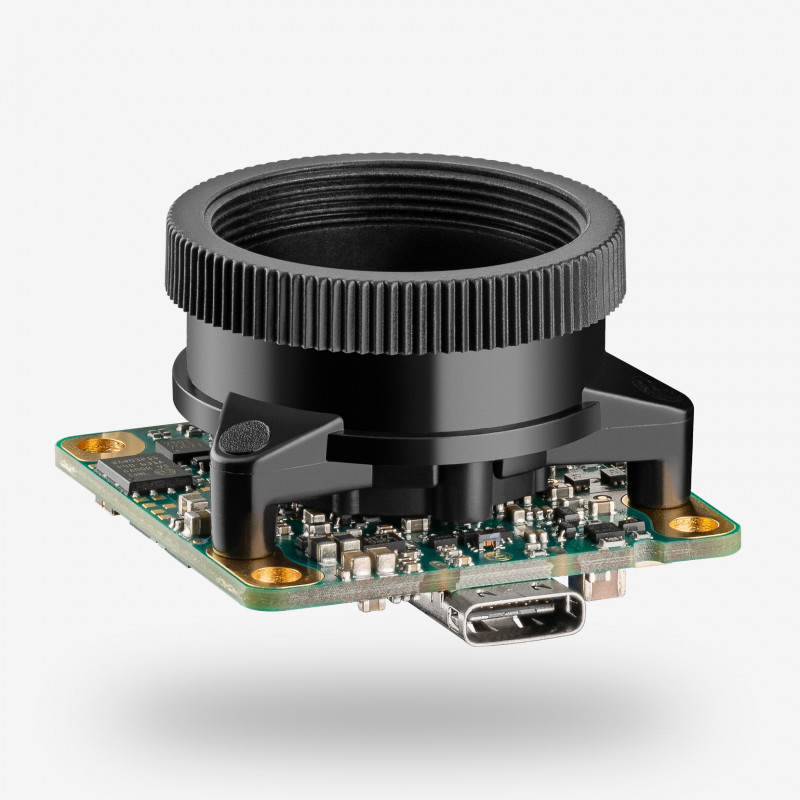

The UI-3594LE Rev. 2 USB 3 single-board camera with CS-Mount lens holder is available as colour version.
Extension ring CS-mount to C-mount
The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.
| Item number |
|
|---|---|
| Name | UI-3594LE Rev. 2 |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 20.0 fps |
| Resolution (h x v) | 4912 x 3684 |
| Optical Area | 6.140 mm x 4.605 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/2" |
| Resolution | 18.10 MPix |
| Pixel size | 1.25 μm |
| IP code | No |
| Product Life Cycle | Series |
