UI-3596LE Rev. 2
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 20.0 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2"
- Resolution
- 18.10 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3596LE-C-HQ_Rev_2.pdf
- 소비자가
- 별도문의

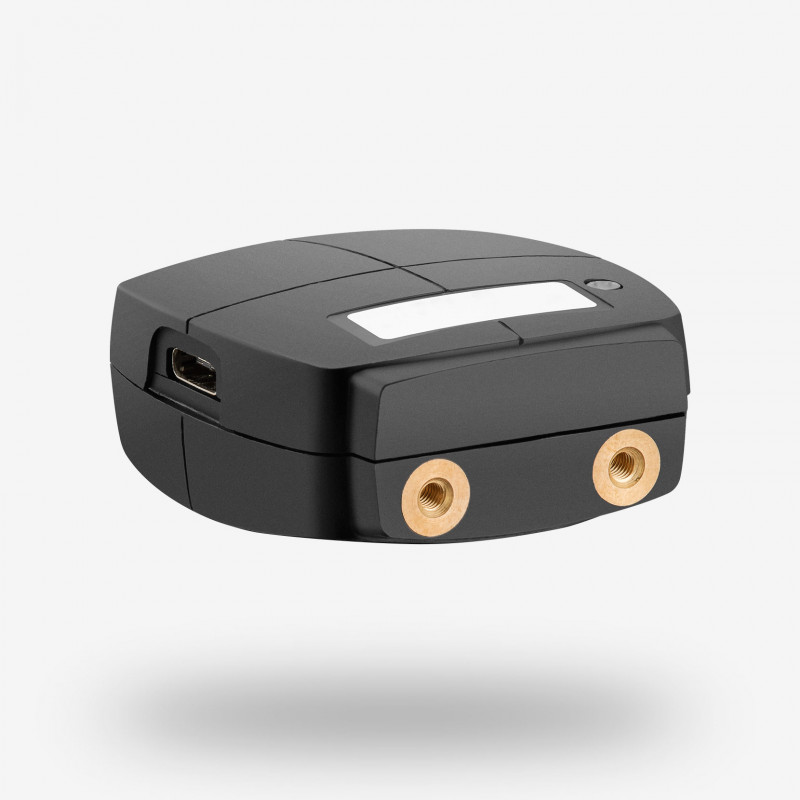

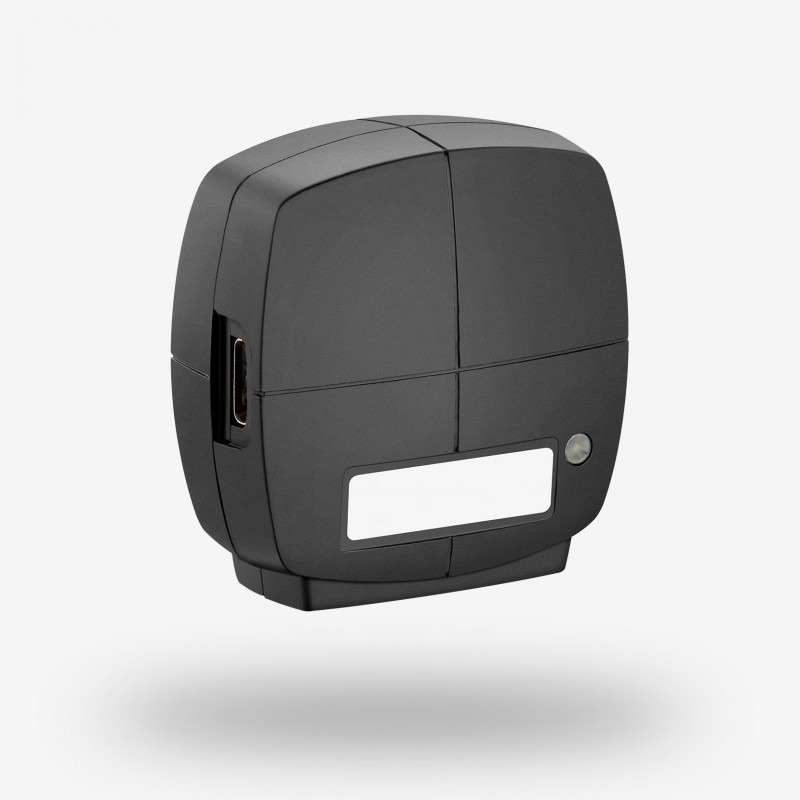

The USB 3 camera UI-3596LE Rev. 2 with 1/2" rolling shutter CMOS colour sensor from ON Semiconductor offers extremely high resolution of 18.10 MPix (4912 x 3684, 20.0 fps), 4K Cinema (4096 x 2304, 38 fps) and Ultra HD (3840 x 2160, 40 fps). The extremely light-sensitive camera captures the smallest details and is ideal for capturing images in variable object distances and changing light conditions. Thanks to its compact dimensions and the twist-proof USB Type-C connector, it can be easily integrated into any image processing system.
The camera also enables USB power delivery. Due to the high sensor performance, this camera is not supported in USB 2.0 mode
This housing variant allows the use of particularly small, low-cost S-mount (M12) lenses.
Item number |
|
---|---|
Name | UI-3596LE Rev. 2 |
Camera family | LE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | ON Semiconductor |
Frame rate @ resolution max. | 20.0 fps |
Resolution (h x v) | 4912 x 3684 |
Optical Area | 6.140 mm x 4.605 mm |
Shutter | Rolling Shutter |
Optical class | 1/2" |
Resolution | 18.10 MPix |
Pixel size | 1.25 μm |
IP code | IP30 |
Product Life Cycle | Series |
