UI-3861LE AF
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 135 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 2.12 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3861LE-C-HQ-AF.pdf
- Data sheet 2
- UI-3861LE-M-GL-AF.pdf
- 소비자가
- 별도문의

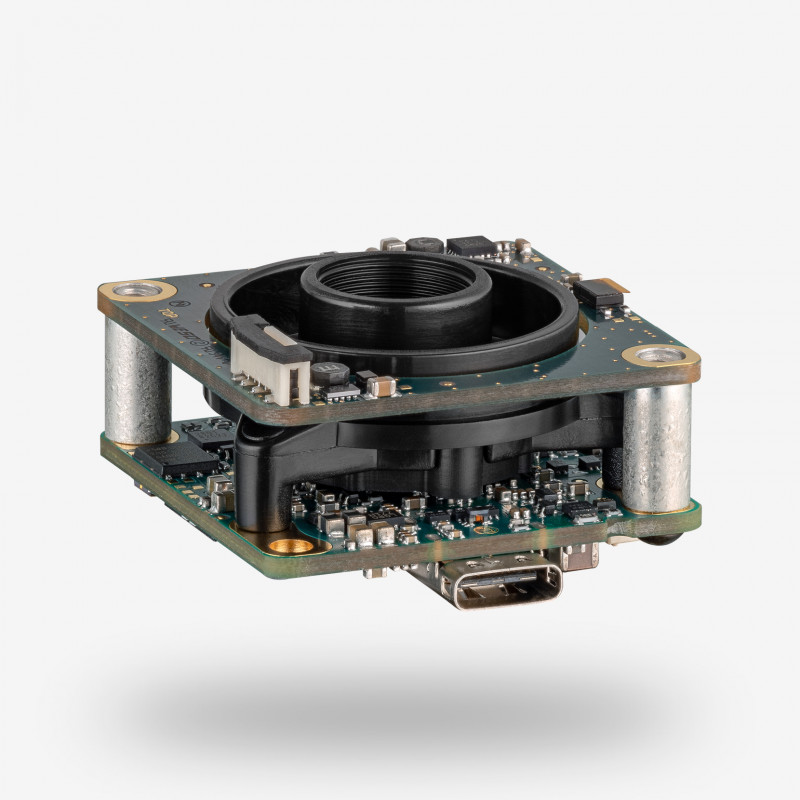

The UI-3861LE AF USB 3 camera with 1/3" Sony IMX290 CMOS sensor provides a resolution of 2.12 MPix (1936 x 1096 px) with superfast 135 fps. The BSI (back side illuminated) rolling shutter sensor of Sony’s STARVIS series is one of the most light-sensitive sensors in our portfolio, offering a truly amazing image quality even in low-light conditions. The colour sensor impresses with a clean colour separation. Thanks to the compact dimensions, this USB 3 camera featuring USB Type-C connector can be integrated easily into a vision system.
The camera's autofocus can be easily configured and triggered via software. This ensures perfectly sharp images in no time at all.
Focus levels can not only be detected automatically, but can also be set manually via software ? in other words, without having to touch the lens physically. This allows, for example, a quick change between different, predefined focus levels.
Thanks to its compact dimensions and USB Type-C connector, it can be easily integrated into any image processing system.

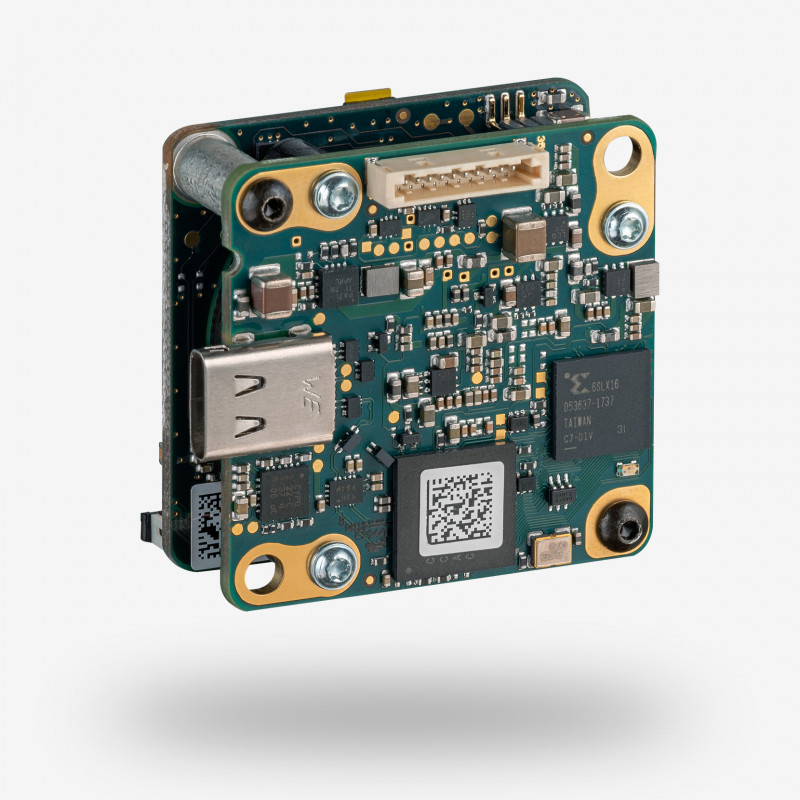

On request, the board-level camera is also available with vertical (-VU) USB Type-C alignment. The camera also enables USB power delivery.
Item number |
|
---|---|
Name | UI-3861LE AF |
Camera family | LE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 135 fps |
Resolution (h x v) | 1936 x 1096 |
Optical Area | 5.610 mm x 3.175 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/3" |
Resolution | 2.12 MPix |
Pixel size | 2.90 μm |
IP code | No |
Product Life Cycle | Series |
