UI-3861LE VU
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 135 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 2.12 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3861LE-C-HQ-VU.pdf
- Data sheet 2
- UI-3861LE-M-GL-VU.pdf
- 소비자가
- 별도문의
The UI-3861LE VU USB 3 camera with 1/3" Sony IMX290 CMOS sensor provides a resolution of 2.1 MP (1936 x 1096 px) with superfast 120 fps. The BSI (back side illuminated) rolling shutter sensor of Sony’s STARVIS series is one of the most light-sensitive sensors in our portfolio, offering a truly amazing image quality even in low-light conditions. The colour sensor impresses with a clean colour separation. Thanks to the compact dimensions, this USB 3 camera featuring USB Type-C connector can be integrated easily into a vision system.
It is suitable for cost-oriented applications in logistics, machine vision, microscopy, and life sciences.

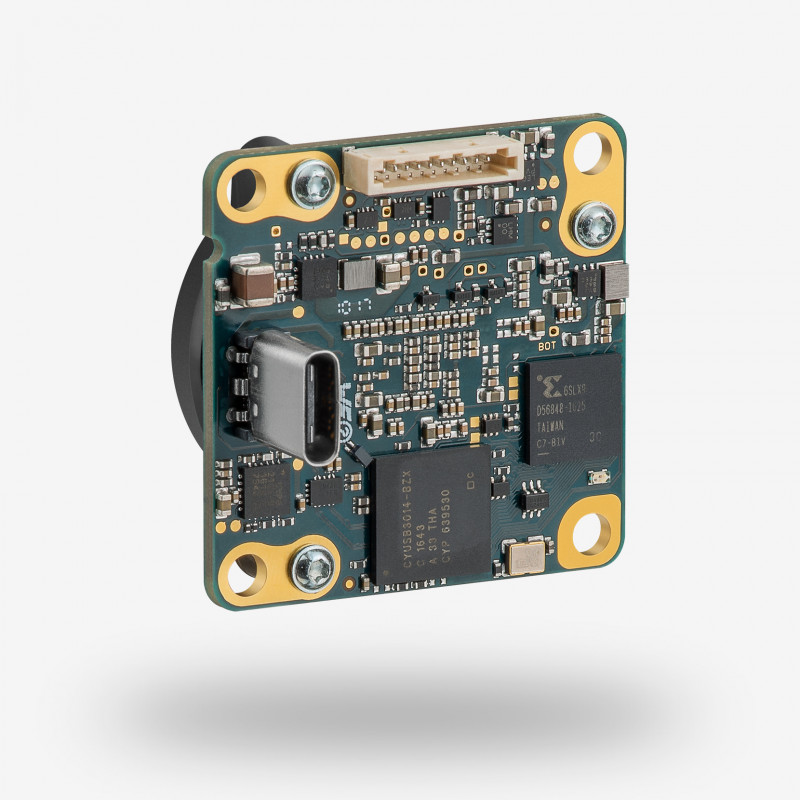

The board-level versions are available with vertical (-VU) or horizontal orientation of the USB Type-C connector.

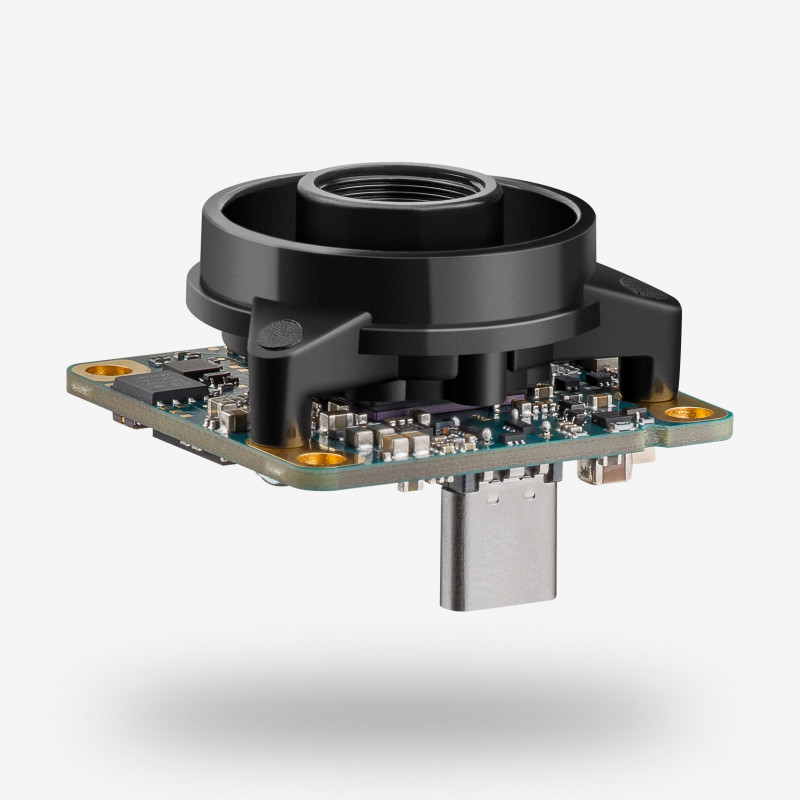

The UI-3861LE VU with S-mount lens holder is available as colour or monochrome version.
Item number |
|
---|---|
Name | UI-3861LE VU |
Camera family | LE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 135 fps |
Resolution (h x v) | 1936 x 1096 |
Optical Area | 5.610 mm x 3.175 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/3" |
Resolution | 2.12 MPix |
Pixel size | 2.90 μm |
IP code | No |
Product Life Cycle | Series |
