UI-3866LE
- Camera family
- LE
- Interface
- USB3
- Sensor type
- CMOS
- Frame / Line rate
- 135 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 2.12 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3866LE-C-HQ.pdf
- Data sheet 2
- UI-3866LE-M-GL.pdf
- 소비자가
- 별도문의

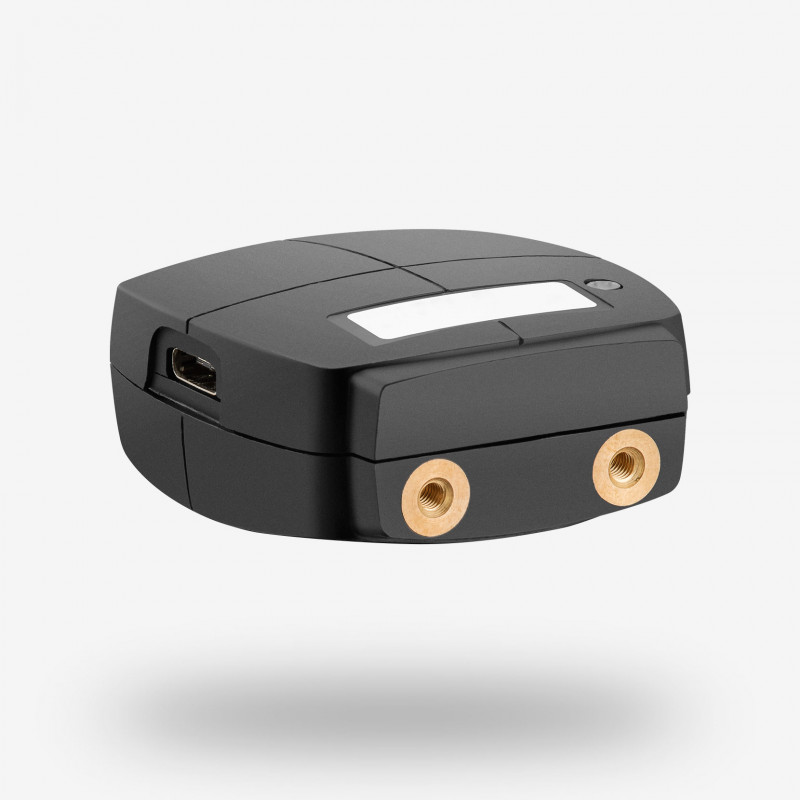

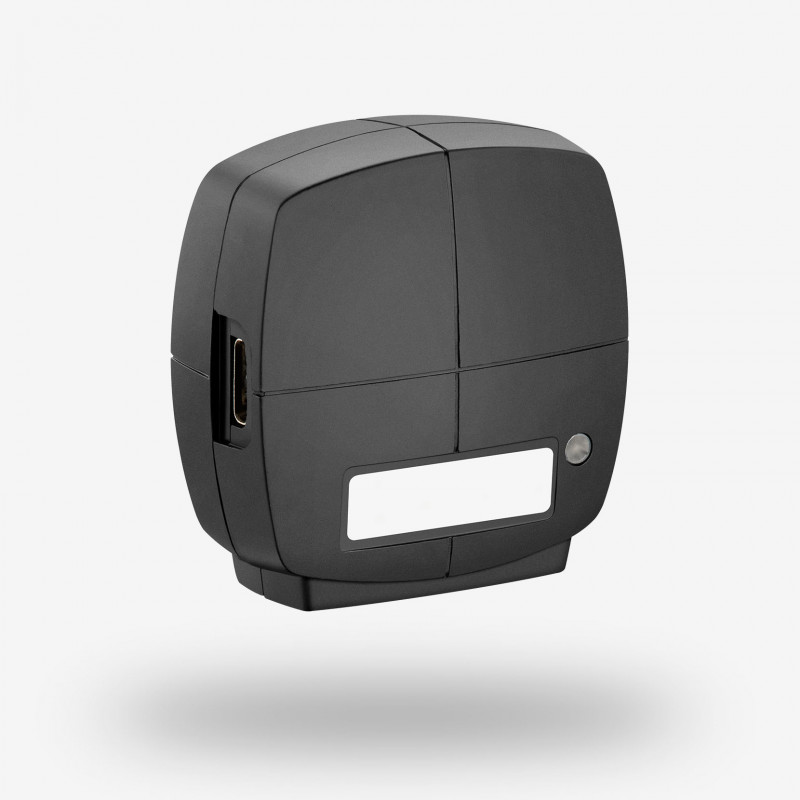

The UI-3866LE USB 3 camera with 1/3" Sony IMX290 CMOS sensor provides a resolution of 2.1 MP (1936 x 1096 px) with superfast 120 fps. The BSI (back side illuminated) rolling shutter sensor of Sony’s STARVIS series is one of the most light-sensitive sensors in our portfolio, offering a truly amazing image quality even in low-light conditions. The colour sensor impresses with a clean colour separation. Thanks to the compact dimensions, this USB 3 camera featuring USB Type-C connector can be integrated easily into a vision system. It is suitable for cost-oriented applications in logistics, machine vision, microscopy, and life sciences.
The UI-3866LE with S-mount lens holder is available as colour or monochrome version.
This housing variant allows the use of particularly small, low-cost S-mount (M12) lenses.
| Item number |
|
|---|---|
| Name | UI-3866LE |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 135 fps |
| Resolution (h x v) | 1936 x 1096 |
| Optical Area | 5.610 mm x 3.175 mm |
| Shutter | Global Start Shutter, Rolling Shutter |
| Optical class | 1/3" |
| Resolution | 2.12 MPix |
| Pixel size | 2.90 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
