UI-3881SE
- Camera family
- SE
- Interface
- USB 3
- Sensor type
- CMOS
- Frame / Line rate
- 58.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 6.41 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3881SE-C-HQ.pdf
- Data sheet 2
- UI-3881SE-M-GL.pdf
- 소비자가
- 별도문의
The USB 3 industrial camera UI-3881SE with the 1/1.8" rolling shutter CMOS sensor Sony IMX178 offers a very high resolution of 6.41 MPix (3088 x 2076 px), making it perfectly suited for visualization tasks in microscopy. It is also a cost-oriented option for Intelligent Traffic Surveillance (ITS). The BSI sensor from Sony's STARVIS series is one of the most light-sensitive sensors in our portfolio, providing excellent image quality even in low light conditions.
Combined with our USB 3 industrial cameras, the Sony IMX178 delivers frame rates of up to 58.0 fps at full resolution. This camera model will be supported beginning with IDS Software Suite 4.90.

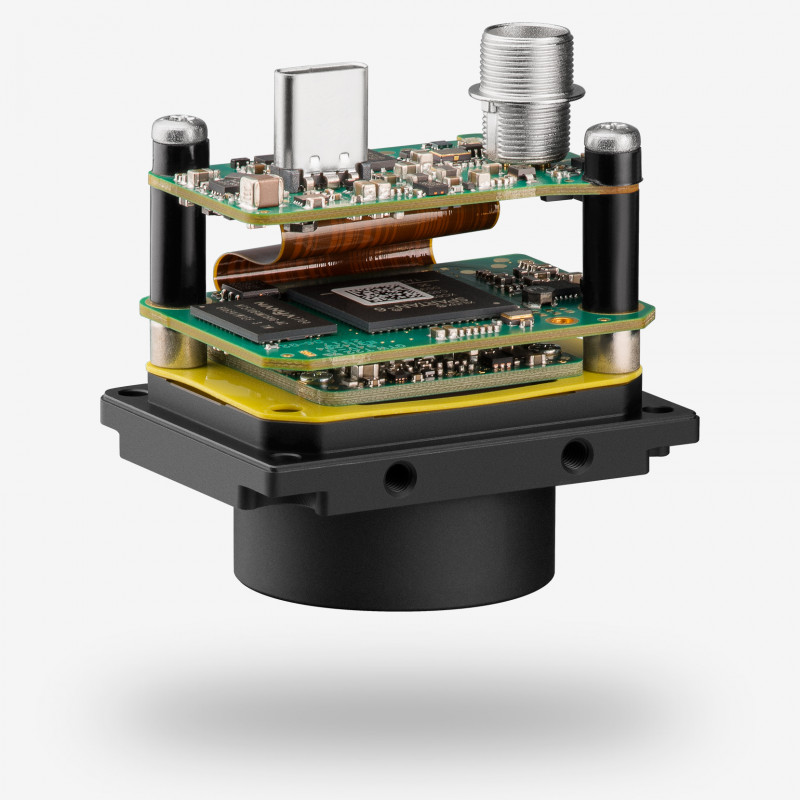

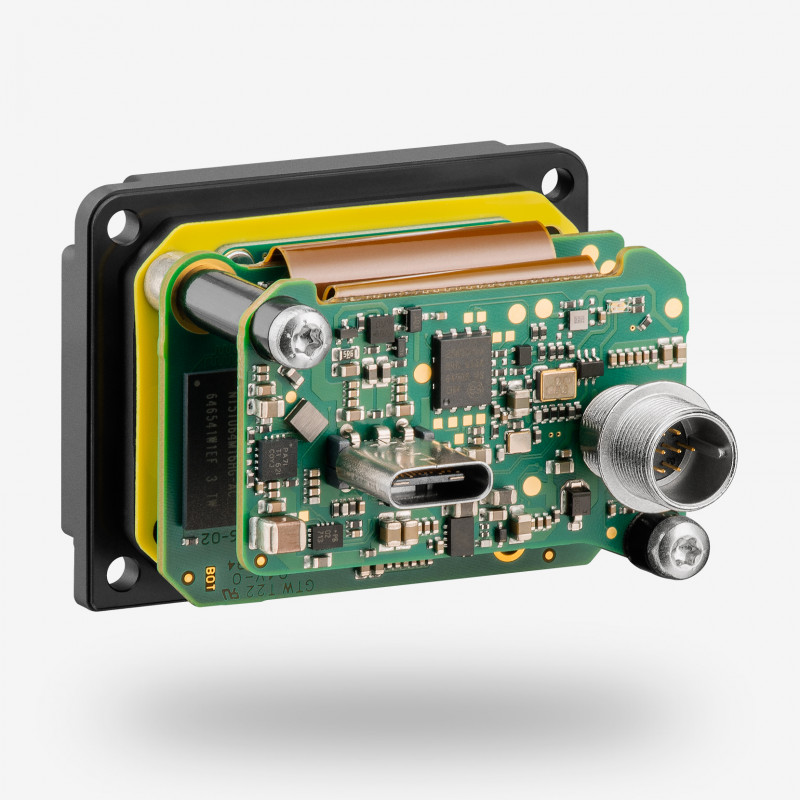

The UI-3881SE board-level camera with C-mount lens holder is available as colour or monochrome version.
Item number |
|
---|---|
Name | UI-3881SE |
Camera family | SE |
Interface | USB 3 |
Interface-Speed | 5.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 58.0 fps |
Resolution (h x v) | 3088 x 2076 |
Optical Area | 7.410 mm x 4.980 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/1.8" |
Resolution | 6.41 MPix |
Pixel size | 2.40 μm |
IP code | No |
Product Life Cycle | Series |
