UI-3886LE
- Camera family
- LE
- Interface
- USB 3
- Sensor type
- CMOS
- Frame / Line rate
- 58.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 6.41 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-3886LE-C-HQ.pdf
- Data sheet 2
- UI-3886LE-M-GL.pdf
- 소비자가
- 별도문의

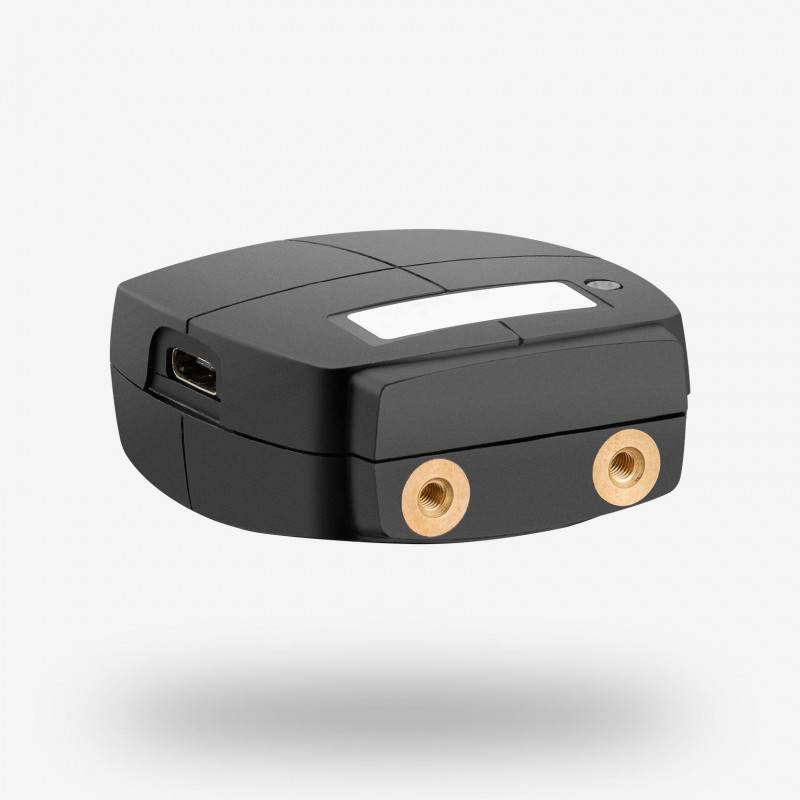

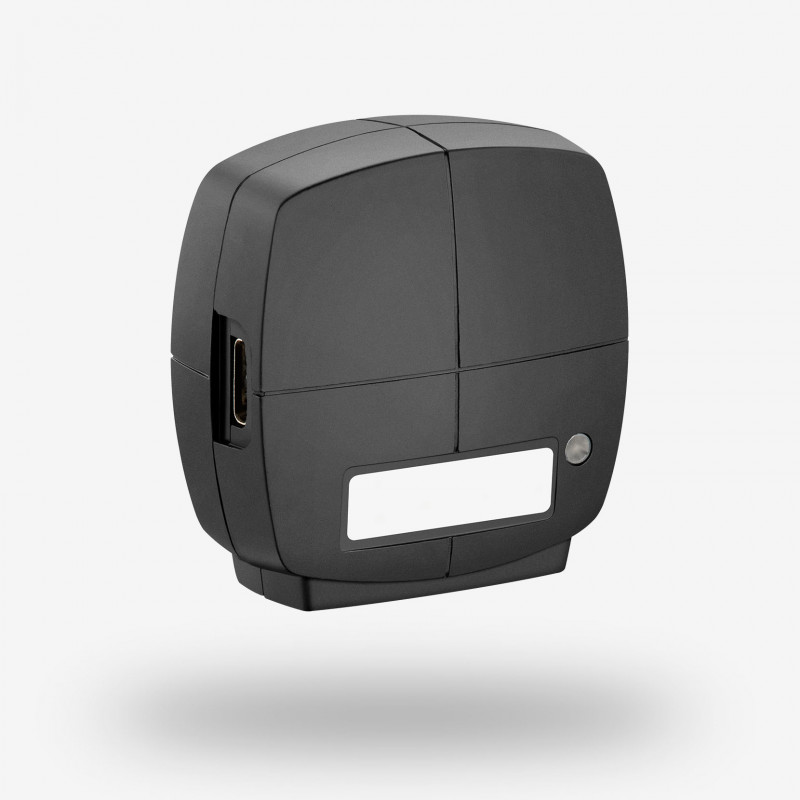

The USB 3 industrial camera UI-3886LE with 1/1.8" rolling shutter Sony IMX178 CMOS sensor provides very high resolution of 6.4 MP (3088 x 2076 px), which makes it especially perfect for visualization tasks in microscopy, and a cost-driven option for Intelligent Transport Systems (ITS). The BSI sensor of Sony’s STARVIS series is one of the most light-sensitive sensors in our portfolio, offering an amazing image quality even in low-light conditions. In combination with our USB 3 industrial cameras, the Sony IMX178 sensor delivers frame rates up to 58 fps at full resolution.
The UI-3886LE with S-mount lens holder is available as colour or monochrome version.
This housing variant allows the use of particularly small, low-cost S-mount (M12) lenses.
| Item number |
|
|---|---|
| Name | UI-3886LE |
| Camera family | LE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 58.0 fps |
| Resolution (h x v) | 3088 x 2076 |
| Optical Area | 7.410 mm x 4.980 mm |
| Shutter | Global Start Shutter, Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 6.41 MPix |
| Pixel size | 2.40 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
