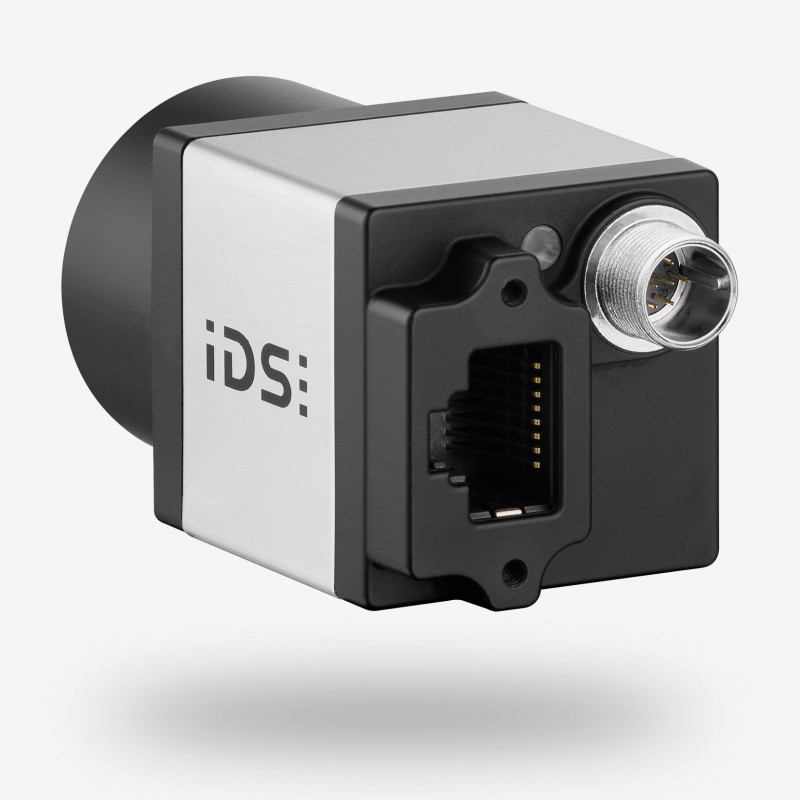

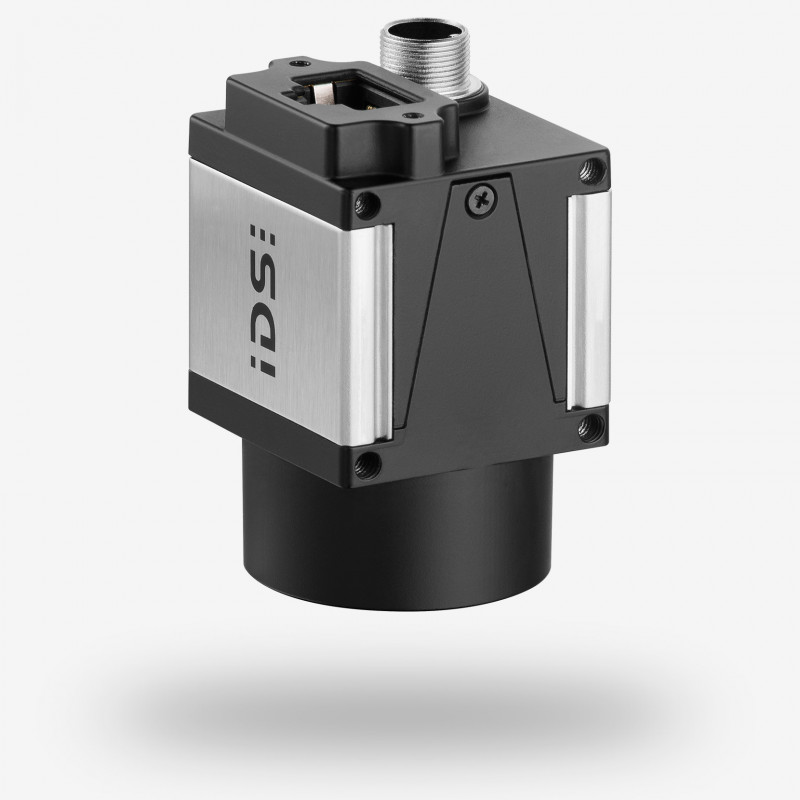

UI-5040CP Rev. 2

Camera family
CP
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
73.0 fps
Shutter
Global Shutter
Optical class
1/3"
Resolution
1.57 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-5040CP-C-HQ_Rev_2.pdf
Data sheet 2
UI-5040CP-M-GL_Rev_2.pdf
소비자가
별도문의
uEye CP Ethernet 1.0 Gbps, 1/3", Sony, 1.57 MPix, CMOS, 73.0 fps, IMX273, 1448 x 1086

For excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: The IMX273 global shutter CMOS sensor from Sony's Pregius series is characterised by its sensitivity and high dynamic range. The resolution of the sensor is 1.57 MPix (1448 x 1086 pixels) with a pixel size of 3.45 μm, its frame rate is 73.0 fps.


The UI-5040CP Rev. 2 can thus be used, for example, in safety technology for detailed evaluations in the area of quality assurance or for traffic monitoring and license plate recognition.





Item number
  • UI-5040CP-C-HQ Rev.2: AB02574
  • UI-5040CP-M-GL Rev.2: AB02575
Name UI-5040CP Rev. 2
Camera family CP
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 73.0 fps
Resolution (h x v) 1448 x 1086
Optical Area 4.995 mm x 3.746 mm
Shutter Global Shutter
Optical class 1/3"
Resolution 1.57 MPix
Pixel size 3.45 μm
IP code IP30
Product Life Cycle Series
