UI-5041SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 73.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/3"
- Resolution
- 1.57 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5041SE-C-HQ_Rev_4.pdf
- Data sheet 2
- UI-5041SE-M-GL_Rev_4.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/3", Sony, 1.57 MPix, CMOS, 73.0 fps, IMX273, 1448 x 1086
For excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: The IMX273 global shutter CMOS sensor from Sony's Pregius series is characterised by its sensitivity and high dynamic range. The resolution of the sensor is 1.57 MPix (1448 x 1086 pixels) with a pixel size of 3.45 μm, its frame rate is 73.0 fps.
The UI-5041SE Rev. 4 can thus be used, for example, in safety technology for detailed evaluations in the area of quality assurance or for traffic monitoring and license plate recognition.

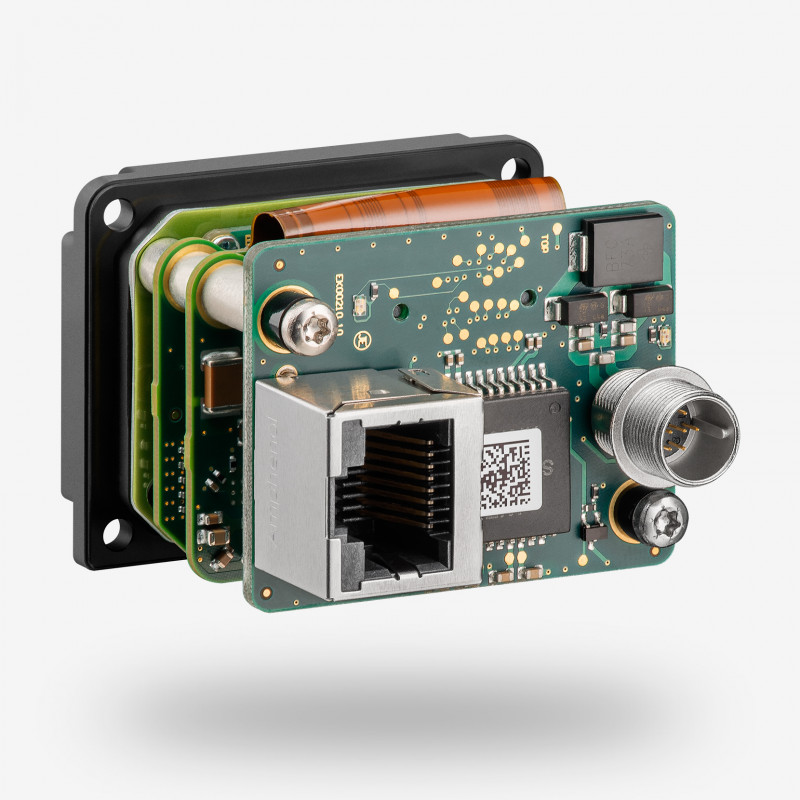

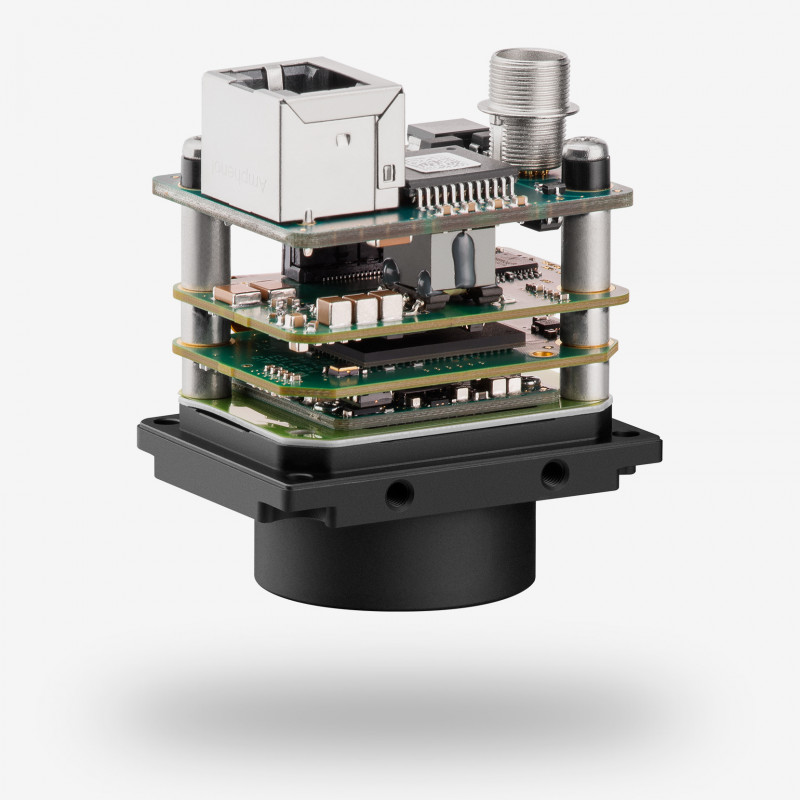

The UI-5041SE Rev. 4 board level camera with C-mount lens holder is available in a colour or monochrome version.
| Item number |
|
|---|---|
| Name | UI-5041SE Rev. 4 |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 73.0 fps |
| Resolution (h x v) | 1448 x 1086 |
| Optical Area | 4.995 mm x 3.746 mm |
| Shutter | Global Shutter |
| Optical class | 1/3" |
| Resolution | 1.57 MPix |
| Pixel size | 3.45 μm |
| IP code | No |
| Product Life Cycle | Series |
