UI-5140FA
- Camera family
- FA
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 88.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/2"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5140FA-C-HQ.pdf
- Data sheet 2
- UI-5140FA-M-GL.pdf
- 소비자가
- 별도문의
uEye FA
Ethernet 1.0 Gbps, 1/2", ON Semiconductor, 1.31 MPix, CMOS, 88.0 fps, PYTHON 1300, 1280 x 1024

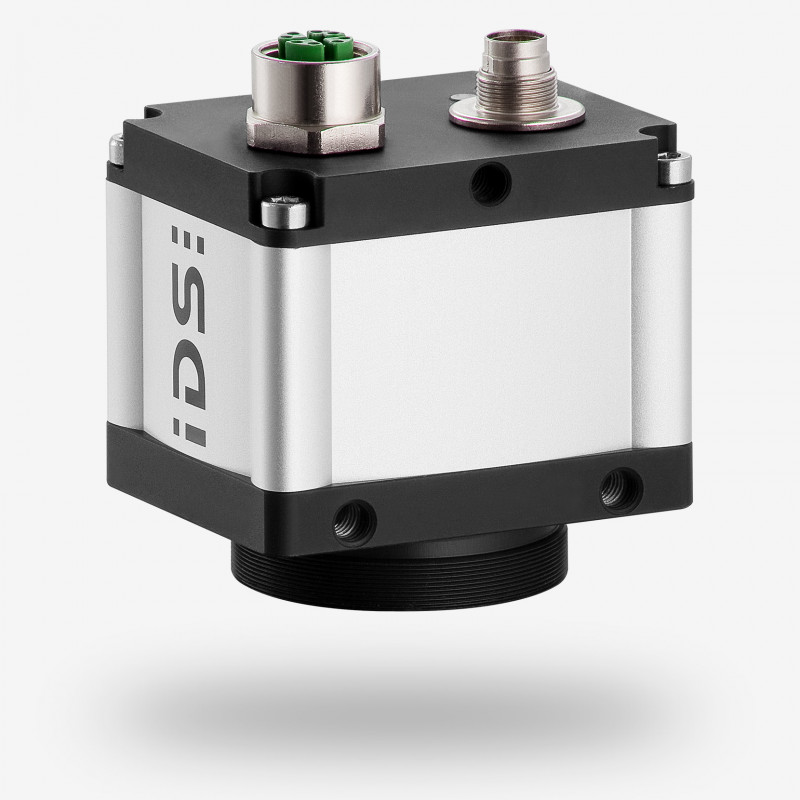

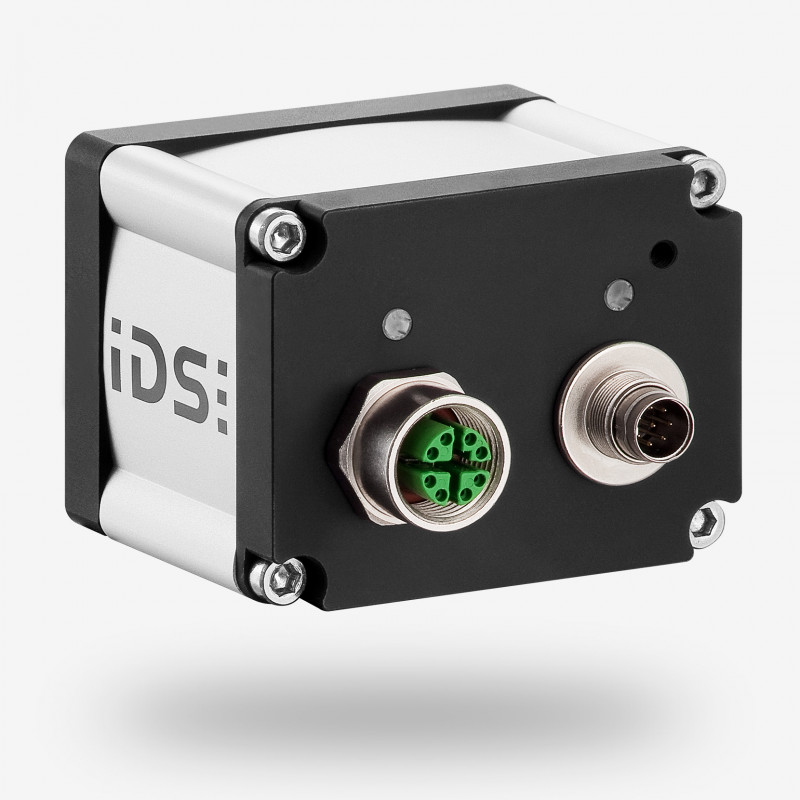

The UI-5140FA GigE industrial camera with protection code IP65/67 and with the integrated fast 1.31 megapixel global shutter PYTHON 1300 sensor from ON Semiconductor is the ideal choice for capturing moving objects in industrial applications. The sensor's large, light-sensitive pixels in conjunction with the FPN correction feature implemented by IDS produces excellent, stripe-free images.
Additional functions such as eight times multi AOI, IDS line scan mode, or HDR mode with knee points make the GigE camera a versatile machine vision camera. The camera's frame rate can also be increased, thanks to the horizontal and vertical read-out feature.
| Item number |
|
|---|---|
| Name | UI-5140FA |
| Camera family | FA |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 88.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.144 mm x 4.915 mm |
| Shutter | Global Shutter |
| Optical class | 1/2" |
| Resolution | 1.31 MPix |
| Pixel size | 4.80 μm |
| IP code | IP65/67 |
| Product Life Cycle | Series |
