UI-5140SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 88.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/2"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5140SE-C-HQ_Rev_4.pdf
- Data sheet 2
- UI-5140SE-M-GL_Rev_4.pdf
- 소비자가
- 별도문의

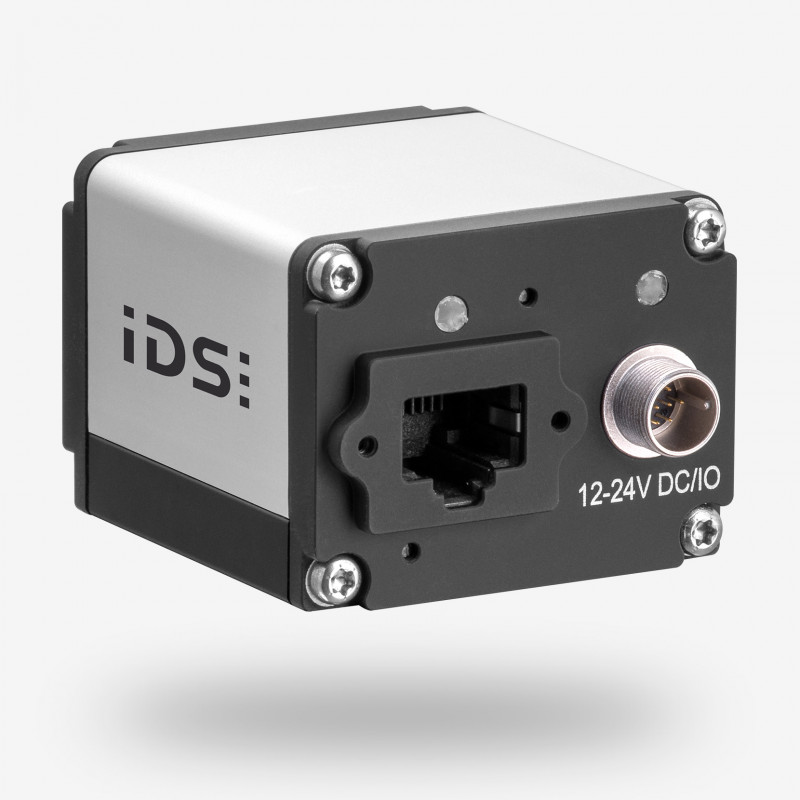

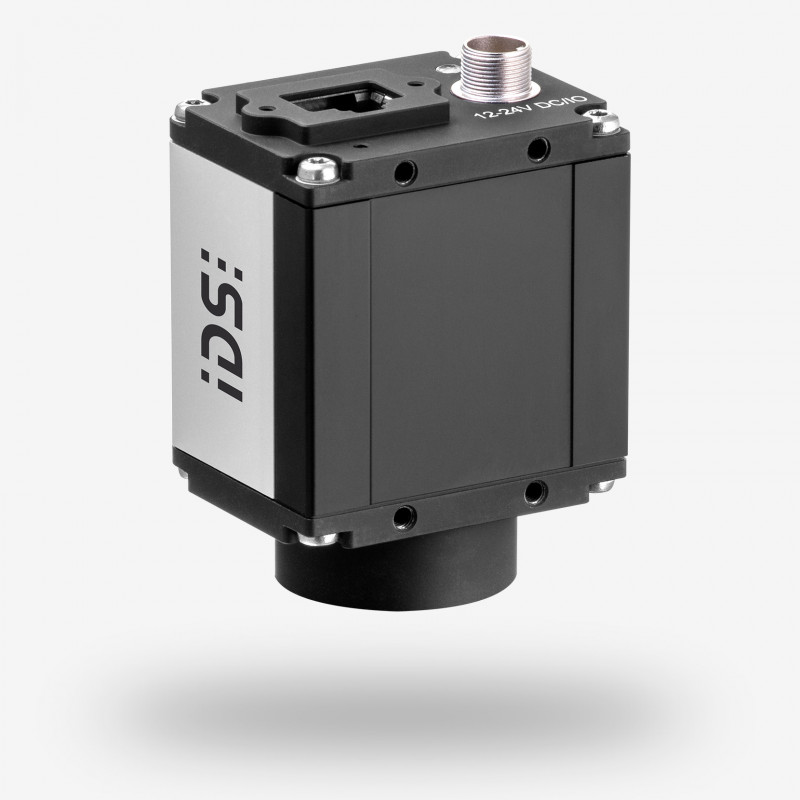

uEye SE
Ethernet 1.0 Gbps, 1/2", ON Semiconductor, 1.31 MPix, CMOS, 88.0 fps, PYTHON 1300, 1280 x 1024
The UI-5140SE GigE industrial camera with integrated PYTHON 1300 fast 1.31 megapixel global shutter sensor from ON Semiconductor is the ideal choice for capturing moving objects in industrial applications. The sensor's large, light-sensitive pixels in conjunction with the FPN correction feature implemented by IDS produces excellent, stripe-free images. Additional functions such as the 8x multi-AOI, the IDS line scan mode or the HDR mode with knee points make this GigE model a highly versatile "machine vision" camera.
The capability to read out images horizontally or vertically can also be utilized to increase the camera's frame rate still further.
The UI-5140SE is available in both monochrome and colour variants.
| Item number |
|
|---|---|
| Name | UI-5140SE Rev. 4 |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 88.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.144 mm x 4.915 mm |
| Shutter | Global Shutter |
| Optical class | 1/2" |
| Resolution | 1.31 MPix |
| Pixel size | 4.80 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
