UI-5240FA

Camera family
FA
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
60.0 fps
Shutter
Global Shutter, Global Start Shutter, Rolling Shutter
Optical class
1/1.8"
Resolution
1.31 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-5240FA-C-HQ.pdf
Data sheet 2
UI-5240FA-M-GL.pdf
소비자가
별도문의
uEye FA Ethernet 1.0 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 60.0 fps, EV76C560, 1280 x 1024

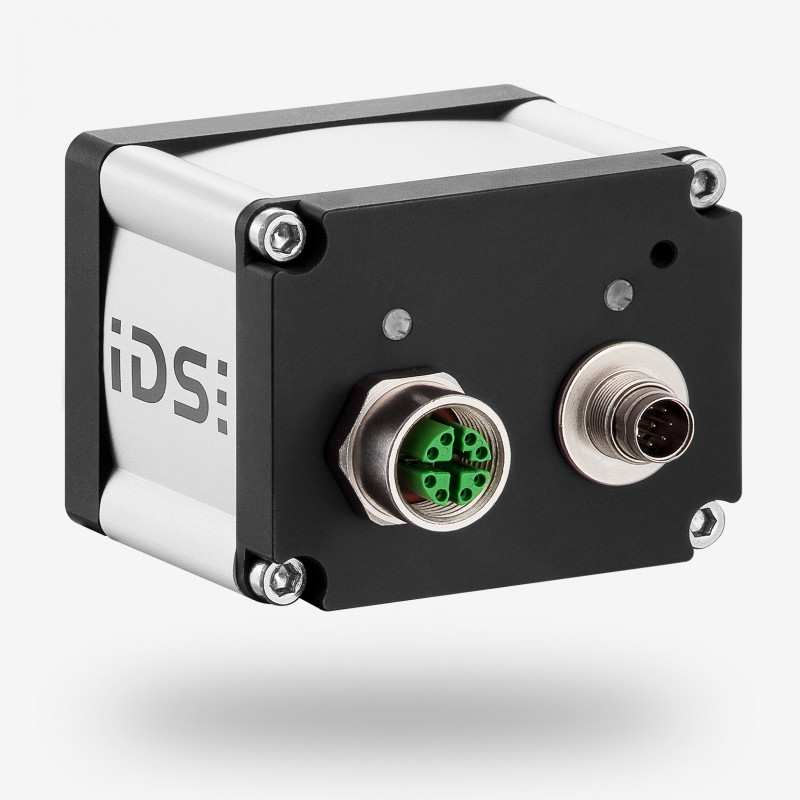

The UI-5240FA is a particularly powerful industrial camera with the e2v 1.3 megapixel CMOS sensor. This is one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome, colour (EV76C560ABT/EV76C560ACT), and NIR versions (EV76C661ABT). Besides its outstanding sensitivity to light in CCD quality, the camera also has a range of other distinctive features: For example, the sensor provides two global shutter and two rolling shutter modes, which you can switch between while the camera is in operation. This makes the sensor extremely flexible if requirements or ambient conditions change. There are also up to four areas of interest (AOI).


You can use these either to check several features simultaneously or to capture AOIs in a sequence of exposures using a wide range of different parameters. The PoE version also provides two additional general purpose I/Os (GPIOs). The power supply is provided by the screw-on, dust proof and splash water proof M12 circular connector.


Detailed information on the e2v CMOS sensors EV76C560/EV76C661 is available here.





Item number
  • UI-5240FA-M-GL: AB02427
  • UI-5240FA-C-HQ: AB02426
Name UI-5240FA
Camera family FA
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer e2v
Frame rate @ resolution max. 60.0 fps
Resolution (h x v) 1280 x 1024
Optical Area 6.784 mm x 5.427 mm
Shutter Global Shutter, Global Start Shutter, Rolling Shutter
Optical class 1/1.8"
Resolution 1.31 MPix
Pixel size 5.30 μm
IP code IP65/67
Product Life Cycle Series
