UI-5242LE-MB
- Camera family
- LE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 50.0 fps
- Shutter
- Global Shutter, Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5242LE-C-MB.pdf
- Data sheet 2
- UI-5242LE-M-MB.pdf
- Data sheet 3
- UI-5242LE-NIR-MB.pdf
- 소비자가
- 별도문의
uEye LE
Ethernet 1.0 Gbps, 1/1.8", e2v, 1.31 MPix, CMOS, 50.0 fps, EV76C560, 1280 x 1024

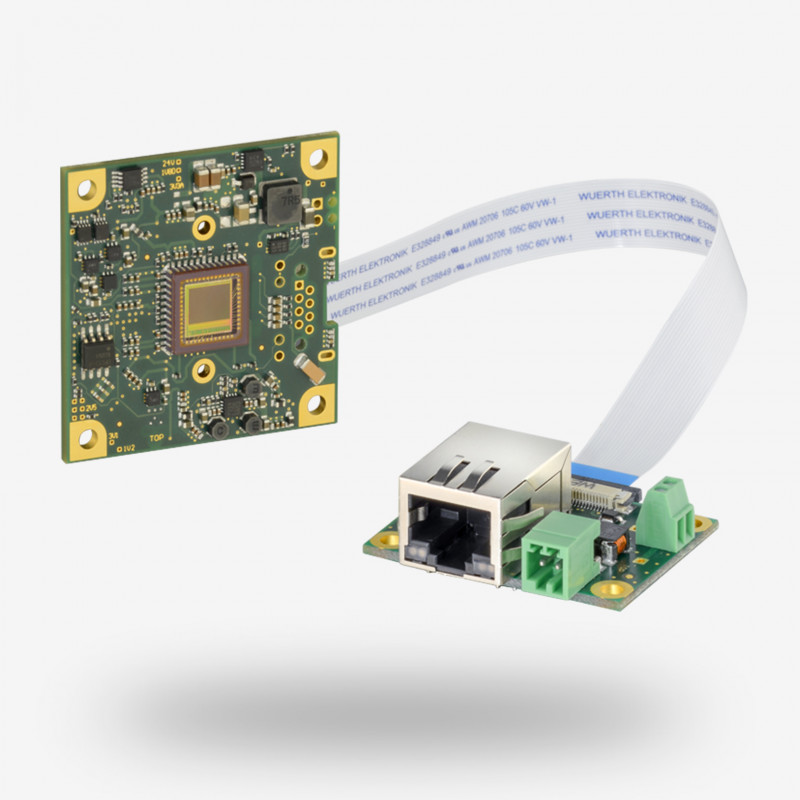

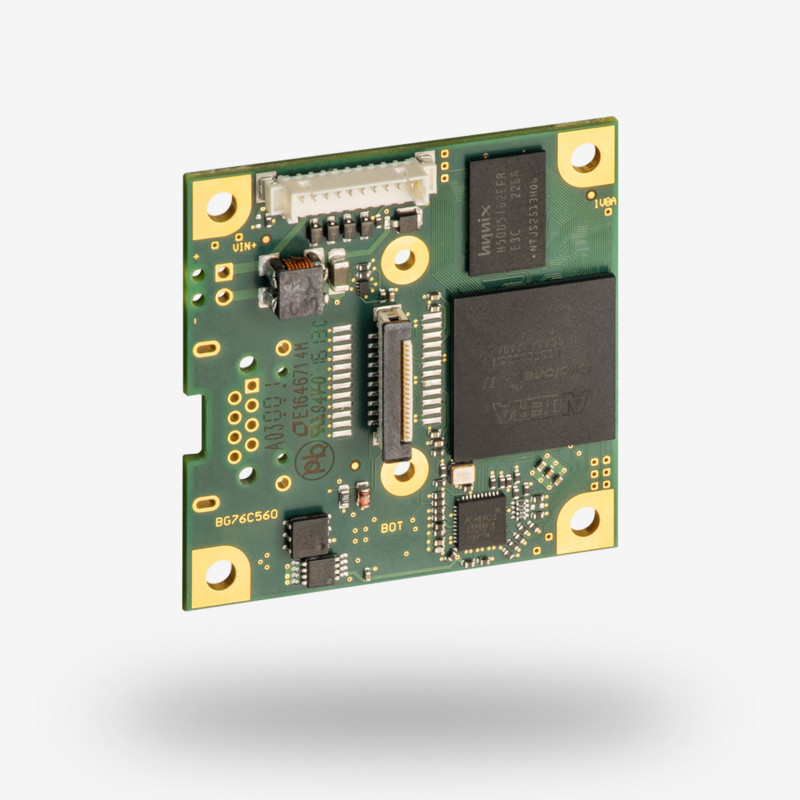

The motherboard including the sensor is separated from the daughterboard including the GigE interface by a flex ribbon cable. Both the flex ribbon cable and the daughterboard are optionally available. The motherboard with single-board GigE camera UI-5242LE is suitable for applications in very small or angled spaces. It is perfect for use in OEM projects, featuring 1.3 MP resolution (1280 x 1024), frame rates up to 50 fps and compact dimensions of 45 x 45 mm.
The 1/1.8" CMOS sensor by e2v is available as NIR version (EV76C661) or colour/monochrome version (EV76C560).
Please note that a daugtherboard as well as a flex ribbon cable is essential for the functionality.
| Item number |
|
|---|---|
| Name | UI-5242LE-MB |
| Camera family | LE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | e2v |
| Frame rate @ resolution max. | 50.0 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.784 mm x 5.427 mm |
| Shutter | Global Shutter, Global Start Shutter, Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 1.31 MPix |
| Pixel size | 5.30 μm |
| IP code | No |
| Product Life Cycle | Series |
