UI-5244LE-MB
- Camera family
- LE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 50.0 fps
- Shutter
- Global Shutter, Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5244LE-C-HQ-MB.pdf
- Data sheet 2
- UI-5244LE-M-GL-MB.pdf
- Data sheet 3
- UI-5244LE-NIR-GL-MB.pdf
- 소비자가
- 별도문의

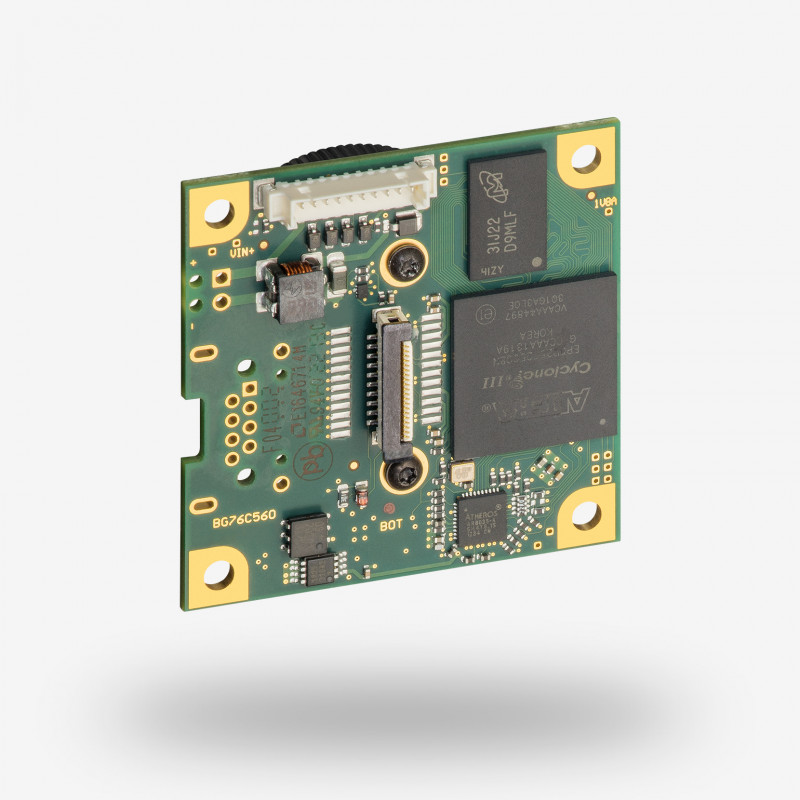

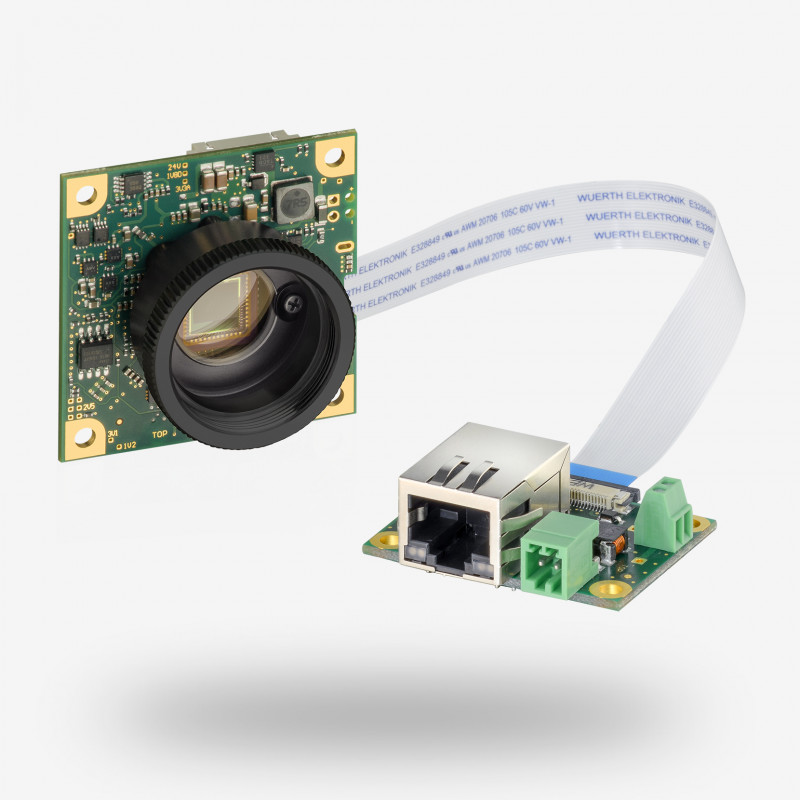

The motherboard including the sensor is separated from the daughterboard including the GigE interface by a flex ribbon cable. Both the flex ribbon cable and the daughterboard are optionally available. The motherboard with single-board GigE camera UI-5244LE including CS-mount and glass filter is suitable for applications in very small or angled spaces. It features a 1/1.8" CMOS sensor by e2v, available as NIR version (EV76C661) or colour/monochrome version (EV76C560). Providing 1.3 MP resolution (1280 x 1024), frame rates up to 50 fps and compact dimensions of 45 x 45 mm, the camera is the perfect solution for OEM projects.
Please note that a daugtherboard as well as a flex ribbon cable is essential for the functionality.
Extension ring CS-mount to C-mount
The CS-mount version comes with an extension ring which enlarges the flange back distance by 5 mm. This allows use of C-mount lenses with the camera.
Item number |
|
---|---|
Name | UI-5244LE-MB |
Camera family | LE |
Interface | Ethernet |
Interface-Speed | 1.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | e2v |
Frame rate @ resolution max. | 50.0 fps |
Resolution (h x v) | 1280 x 1024 |
Optical Area | 6.784 mm x 5.427 mm |
Shutter | Global Shutter, Global Start Shutter, Rolling Shutter |
Optical class | 1/1.8" |
Resolution | 1.31 MPix |
Pixel size | 5.30 μm |
IP code | No |
Product Life Cycle | Series |
