UI-5250CP Rev. 2

Camera family
CP
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
52.0 fps
Shutter
Global Shutter, Global Start Shutter, Rolling Shutter
Optical class
1/1.8"
Resolution
1.92 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-5250CP-C-HQ_Rev_2.pdf
Data sheet 2
UI-5250CP-M-GL_Rev_2.pdf
소비자가
별도문의
uEye CP Ethernet 1.0 Gbps, 1/1.8", e2v, 1.92 MPix, CMOS, 52.0 fps, EV76C570, 1600 x 1200

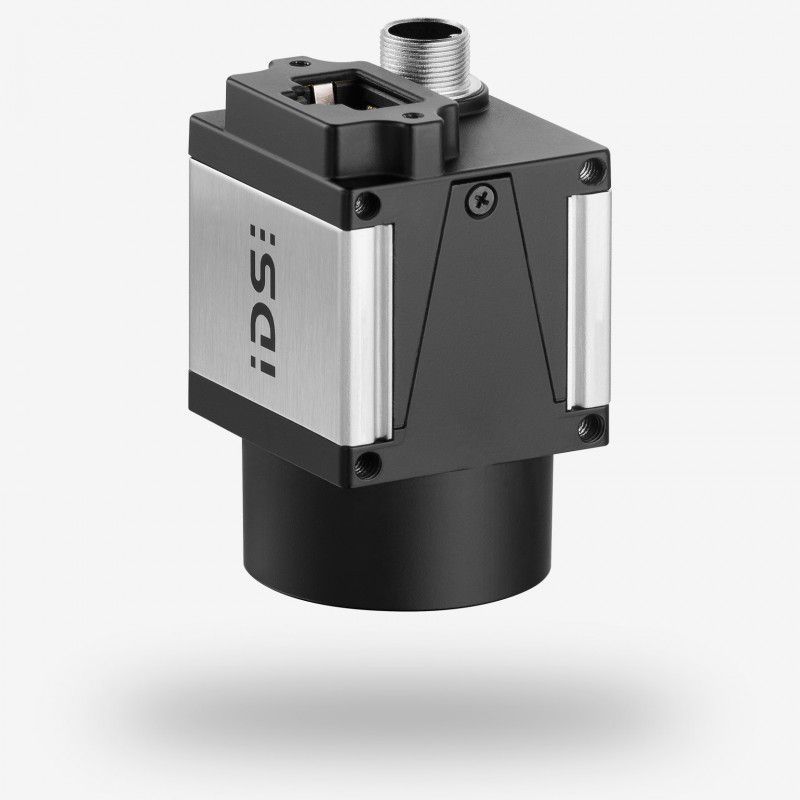

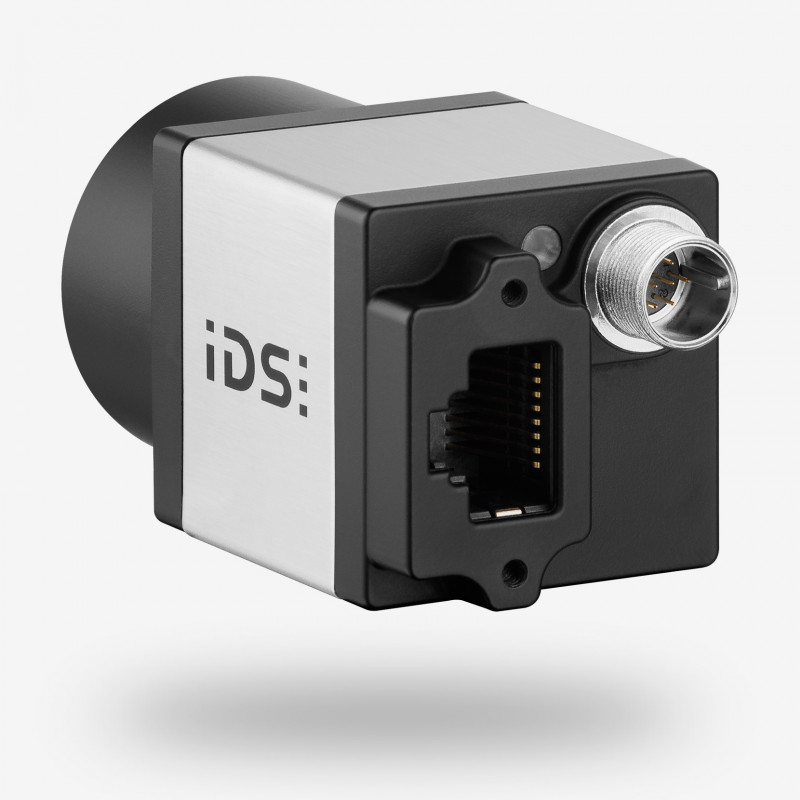

The UI-5250CP Rev. 2 with the e2v CMOS sensor with 2 megapixel resolution is an especially high-performance and versatile industrial camera (EV76C570). It has one of the most sensitive sensors in the IDS product portfolio and it is available in monochrome and color versions. Besides its outstanding sensitivity to light in CCD quality, the camera also has a range of other distinctive features: The sensor allows you to switch between various shutter modes, which allow you to capture sharp images of moving objects or extremely low-noise, high-contrast images.


There are also up to four areas of interest (AOI). You can use these either to check several features simultaneously or to capture AOIs in a sequence of exposures using a wide range of different parameters.





Item number
  • UI-5250CP-C-HQ Rev.2: AB02042
  • UI-5250CP-M-GL Rev.2: AB02043
Name UI-5250CP Rev. 2
Camera family CP
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer e2v
Frame rate @ resolution max. 52.0 fps
Resolution (h x v) 1600 x 1200
Optical Area 7.200 mm x 5.400 mm
Shutter Global Shutter, Global Start Shutter, Rolling Shutter
Optical class 1/1.8"
Resolution 1.92 MPix
Pixel size 4.50 μm
IP code IP30
Product Life Cycle Series
