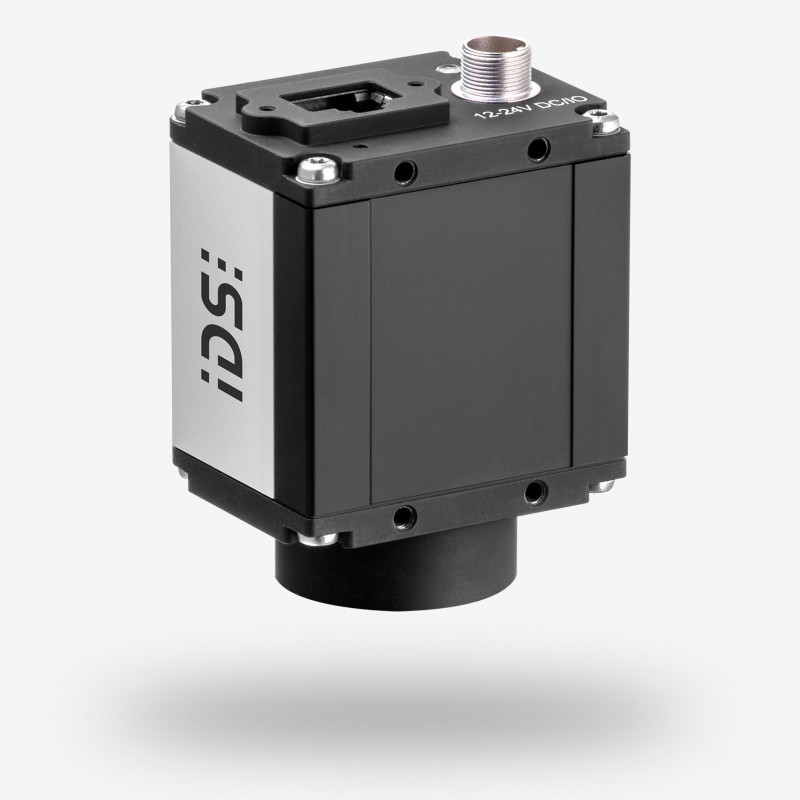

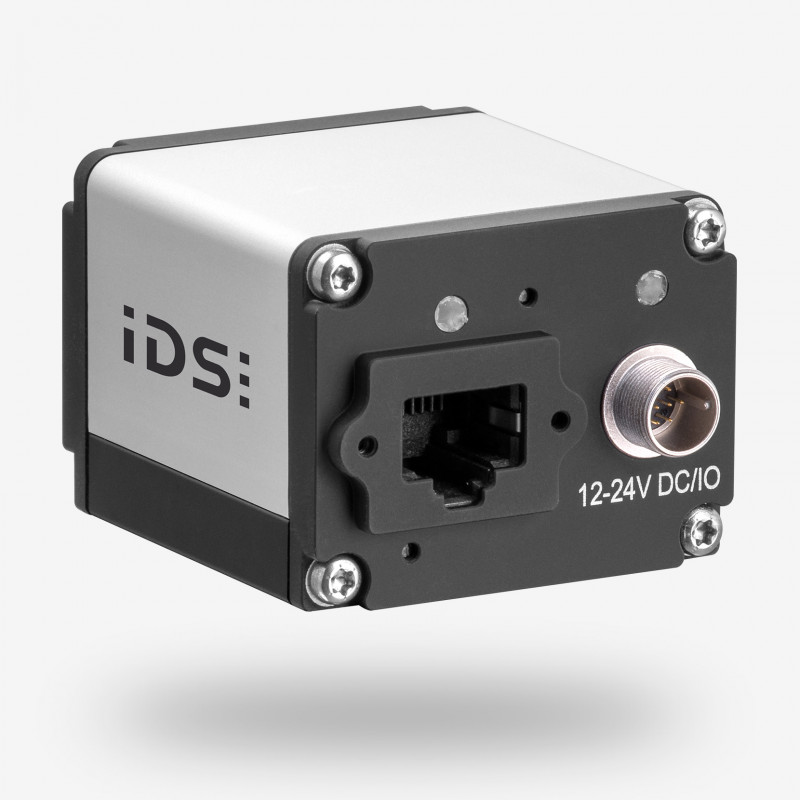

UI-5250SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 52.0 fps
- Shutter
- Global Shutter, Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 1.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5250SE-C-HQ_Rev_4.pdf
- Data sheet 2
- UI-5250SE-M-GL_Rev_4.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/1.8", e2v, 1.92 MPix, CMOS, 52.0 fps, EV76C570, 1600 x 1200
The UI-5250SE Rev. 4 with the e2v CMOS sensor (EV76C570) with 2 megapixel resolution is suitable for an enormous variety of applications. The extremely light sensitive camera in CCD quality is available in two versions, monochrome and colour, and features a whole range of additional functions. It allows you to switch between several shutter modes, enabling you to capture sharp images of moving objects or extremely low-noise, high-contrast images.
There are also up to four areas of interest (AOI). You can use these either to check several features simultaneously or to capture AOIs in a sequence of exposures using a wide range of different parameters.
The UI-5250SE is available in both monochrome and colour variants.
| Item number |
|
|---|---|
| Name | UI-5250SE Rev. 4 |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | e2v |
| Frame rate @ resolution max. | 52.0 fps |
| Resolution (h x v) | 1600 x 1200 |
| Optical Area | 7.200 mm x 5.400 mm |
| Shutter | Global Shutter, Global Start Shutter, Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 1.92 MPix |
| Pixel size | 4.50 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
