UI-5260CP Rev. 2
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 47.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5260CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-5260CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
Ethernet 1.0 Gbps, 1/1.2", Sony, 2.35 MPix, CMOS, 47.0 fps, IMX249, 1936 x 1216

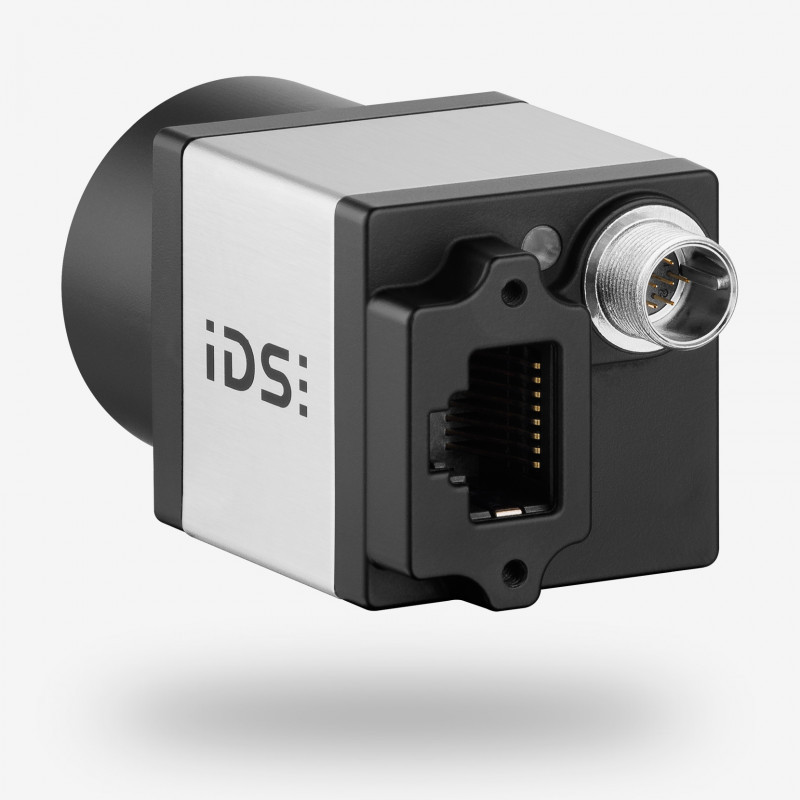

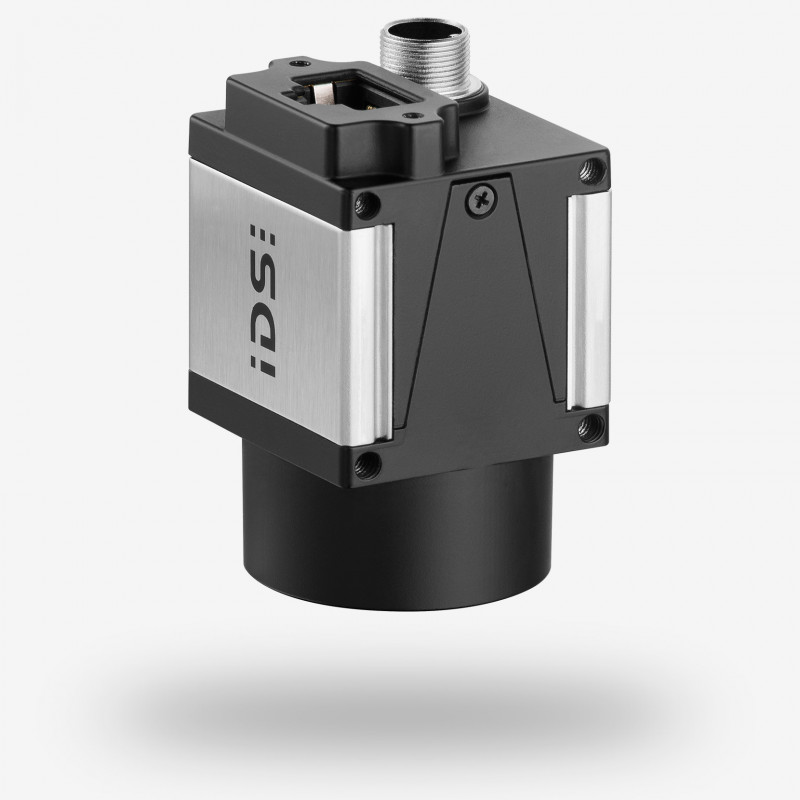

The GigE camera UI-5260CP Rev. 2 is equipped with budget-priced 2.35 MP CMOS sensor Sony IMX249 that sets new standards in terms of light sensitivity, dynamic range and color reproduction. The GigE industrial camera provides excellent image quality with extraordinarily low-noise performance - at frame rates up to 47 fps (full resolution: 1936 x 1216 px).
The sensor is perfect for applications demanding excellent image quality even in low-light conditions e.g. in ITS and in quality assurance. Also available as USB 3 version.
| Item number |
|
|---|---|
| Name | UI-5260CP Rev. 2 |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 47.0 fps |
| Resolution (h x v) | 1936 x 1216 |
| Optical Area | 11.345 mm x 7.126 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.2" |
| Resolution | 2.35 MPix |
| Pixel size | 5.86 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
