UI-5261SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 47.0 fps
- Shutter
- Global Shutter
- Optical class
- 1/1.2"
- Resolution
- 2.35 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5261SE-C-HQ_Rev_4.pdf
- Data sheet 2
- UI-5261SE-M-GL_Rev_4.pdf
- 소비자가
- 별도문의
The UI-5261SE Rev. 4 Gigabit Ethernet industrial camera with the IMX249 2.35 megapixel CMOS sensor from Sony offers the standard image formats 4:3 and 16:9. At full resolution of 1936 x 1216 pixels, it delivers 47 frames per second, fully utilising the GigE bandwidth. With its exceptionally high dynamic range and outstanding signal/noise ratio, it ensures high-contrast and practically noise-free images, which are impressive even in weak or fluctuating lighting conditions.
Special functions such as long exposures (30 seconds) and a line scan mode implemented by IDS extend the range of applications in the factory automation environment.

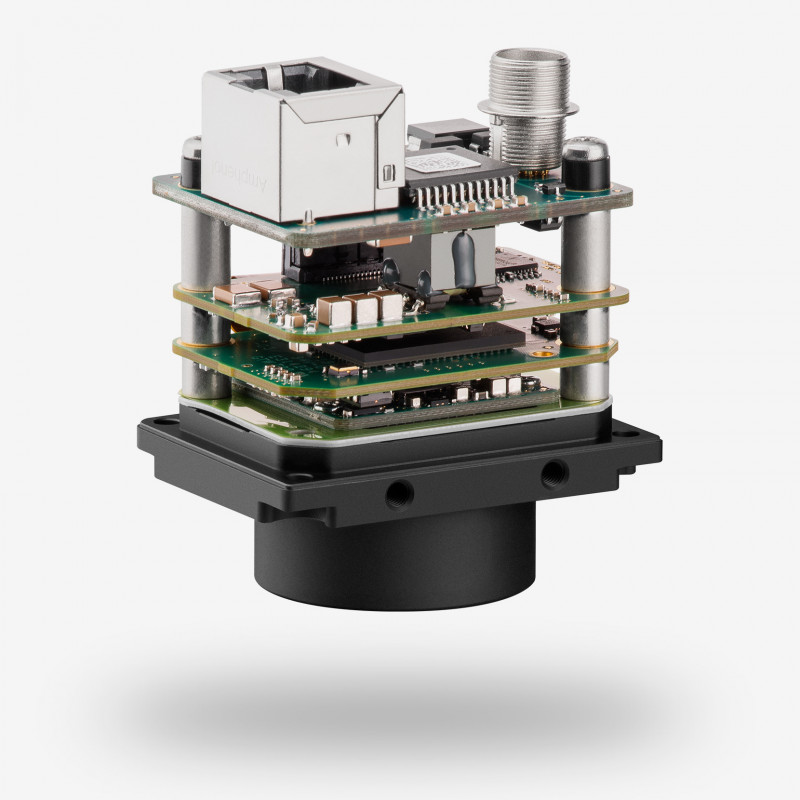

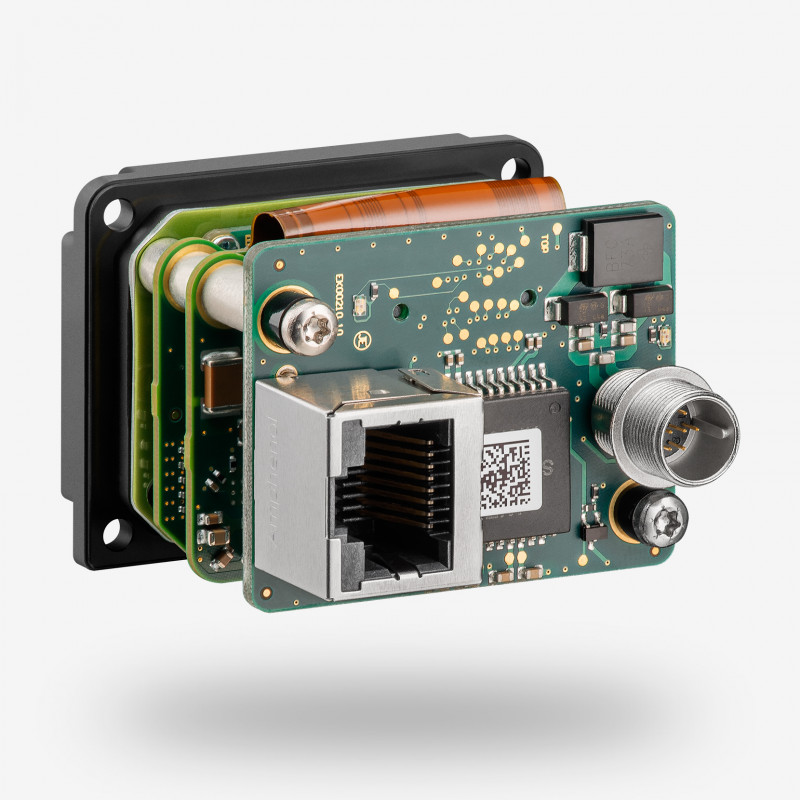

The UI-5261SE board level camera with C-mount lens holder is available in a colour or monochrome version.
Item number |
|
---|---|
Name | UI-5261SE Rev. 4 |
Camera family | SE |
Interface | Ethernet |
Interface-Speed | 1.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 47.0 fps |
Resolution (h x v) | 1936 x 1216 |
Optical Area | 11.345 mm x 7.126 mm |
Shutter | Global Shutter |
Optical class | 1/1.2" |
Resolution | 2.35 MPix |
Pixel size | 5.86 μm |
IP code | No |
Product Life Cycle | Series |
