UI-5280SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 22.0 fps
- Shutter
- Global Shutter
- Optical class
- 2/3"
- Resolution
- 5.04 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5280SE-C-HQ_Rev_4.pdf
- Data sheet 2
- UI-5280SE-M-GL_Rev_4.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 2/3", Sony, 5.04 MPix, CMOS, 22.0 fps, IMX264, 2456 x 2054

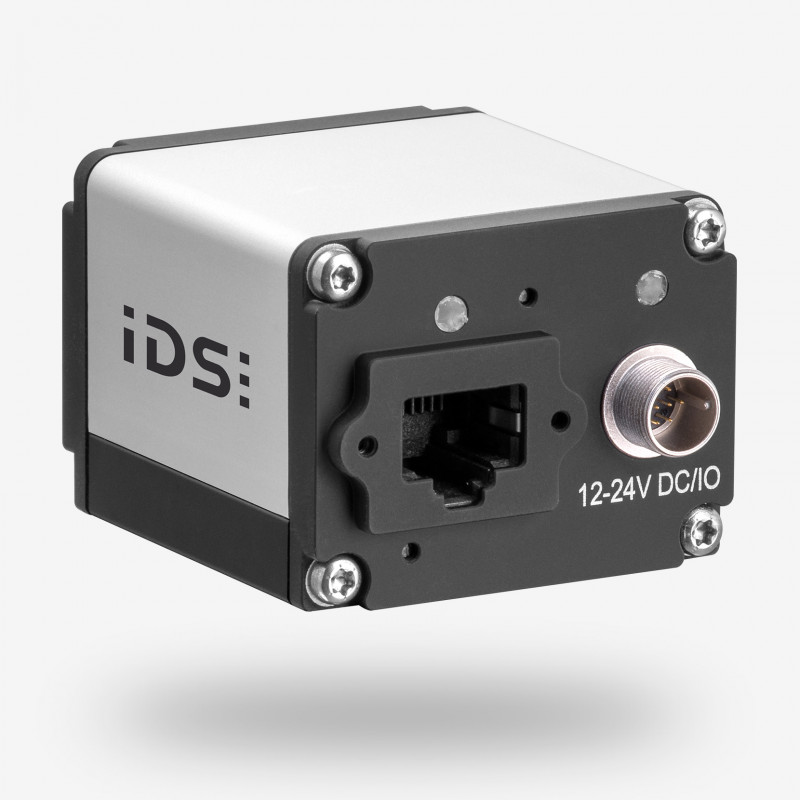

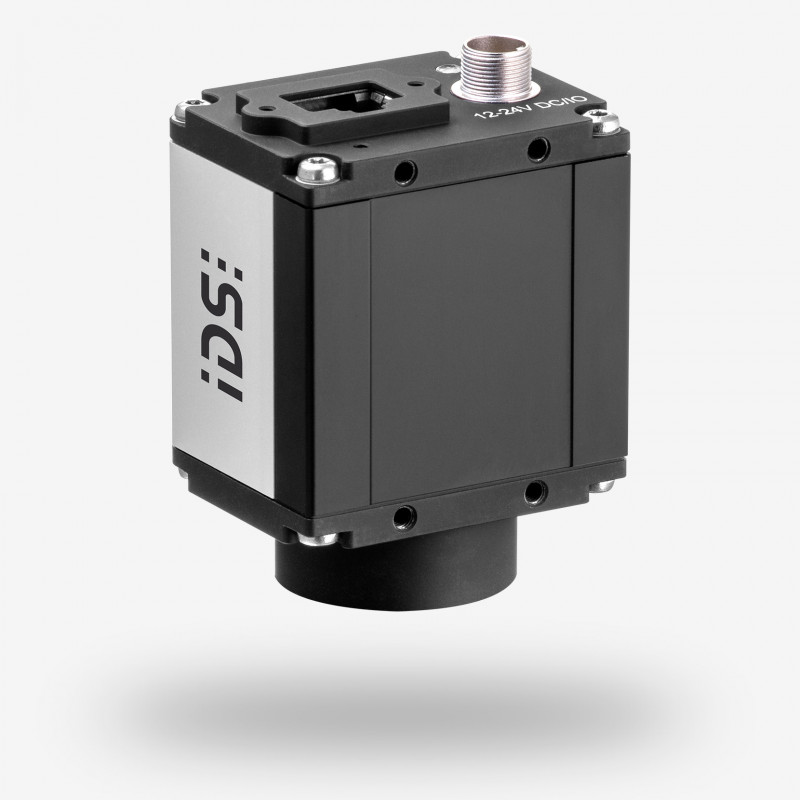

The UI-5280SE GigE industrial camera with the compact 2/3" global shutter IMX264 CMOS sensor from Sony offers brilliant image quality, high light sensitivity, and an extraordinarily high dynamic range. The CMOS camera delivers almost noise-free, high-contrast 5 MP images in 5:4 format at 22.0 fps in applications with varying lighting conditions and in microscopy.
The IDS Software Suite includes a number of special features, such as 30 second long exposure as well as line scan mode.
| Item number |
|
|---|---|
| Name | UI-5280SE Rev. 4 |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 22.0 fps |
| Resolution (h x v) | 2456 x 2054 |
| Optical Area | 8.473 mm x 7.086 mm |
| Shutter | Global Shutter |
| Optical class | 2/3" |
| Resolution | 5.04 MPix |
| Pixel size | 3.45 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
