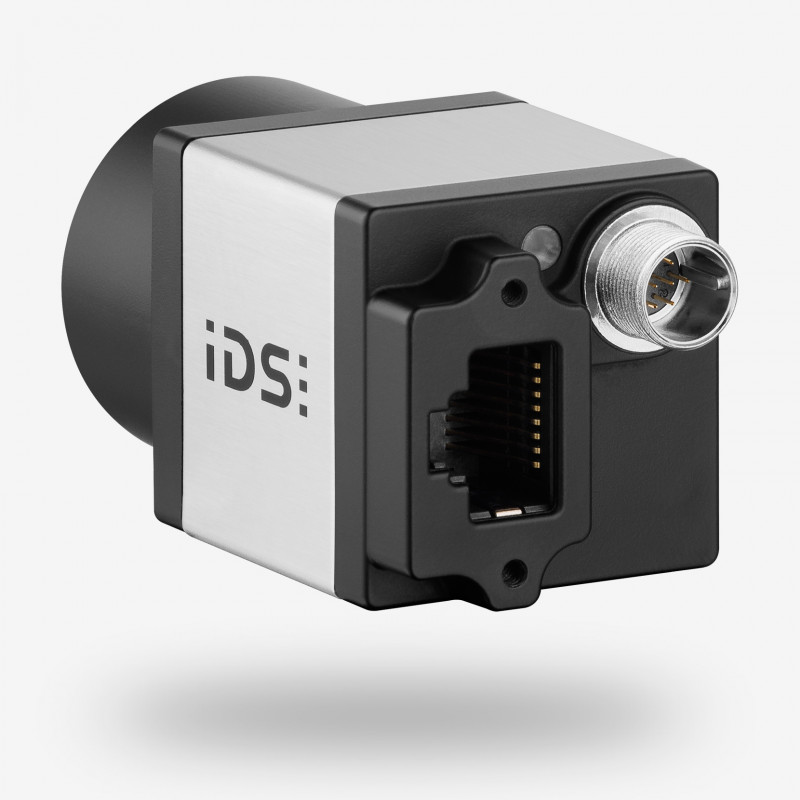

UI-5370CP Rev. 2
- Camera family
- CP
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 28.0 fps
- Shutter
- Global Shutter
- Optical class
- 1"
- Resolution
- 4.19 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5370CP-C-HQ_Rev_2.pdf
- Data sheet 2
- UI-5370CP-M-GL_Rev_2.pdf
- 소비자가
- 별도문의
uEye CP
Ethernet 1.0 Gbps, 1", ams/CMOSIS, 4.19 MPix, CMOS, 28.0 fps, CMV4000, 2048 x 2048
The UI-5370CP Rev. 2 is fitted with the highly-sensitive and fast 4.19 megapixel CMOS sensor from ams/CMOSIS (CMV4000). The sensor provides a host of innovative and useful sensor features as well as a resolution of 2048 x 2048 pixels. Thanks to the innovative pixel architecture, fixed pattern noise and hiss are considerably reduced.
The pipelining feature also allows further exposure while the sensor data is being read out, which speeds up the readout and effectively reduces motion blur. With an extremely large optical format of 1", the sensor delivers large pixels and is extremely low-noise and sensitive to light.
| Item number |
|
|---|---|
| Name | UI-5370CP Rev. 2 |
| Camera family | CP |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ams/CMOSIS |
| Frame rate @ resolution max. | 28.0 fps |
| Resolution (h x v) | 2048 x 2048 |
| Optical Area | 11.264 mm x 11.264 mm |
| Shutter | Global Shutter |
| Optical class | 1" |
| Resolution | 4.19 MPix |
| Pixel size | 5.50 μm |
| IP code | IP30 |
| Product Life Cycle | Series |
