UI-5481LE-MB
- Camera family
- LE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 14.1 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/2.5"
- Resolution
- 4.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5481LE-M-MB.pdf
- 소비자가
- 별도문의
uEye LE
Ethernet 1.0 Gbps, 1/2.5", ON Semiconductor, 4.92 MPix, CMOS, 14.1 fps, MT9P031, 2560 x 1920

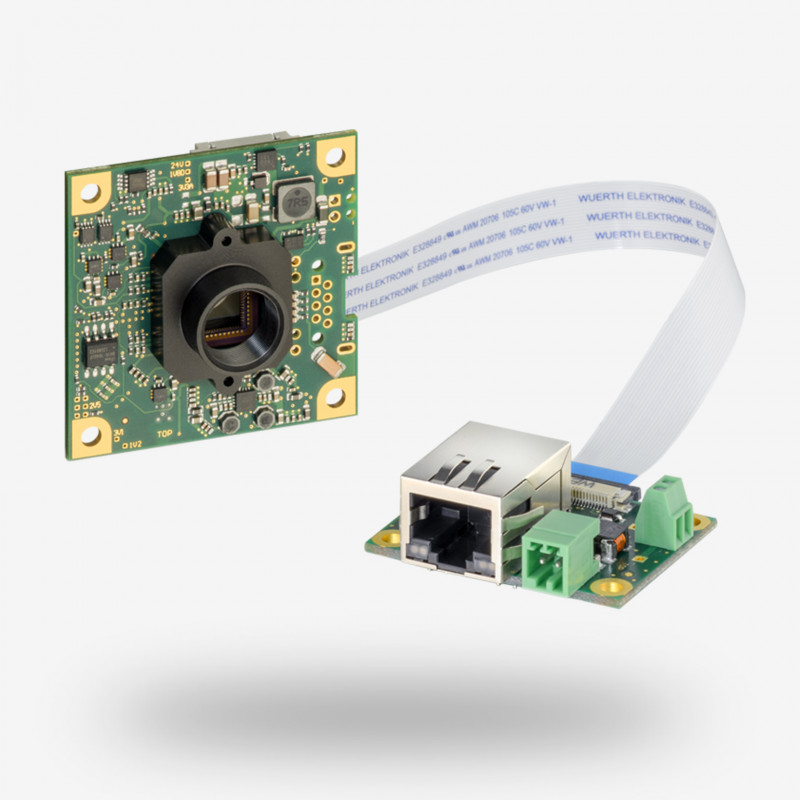

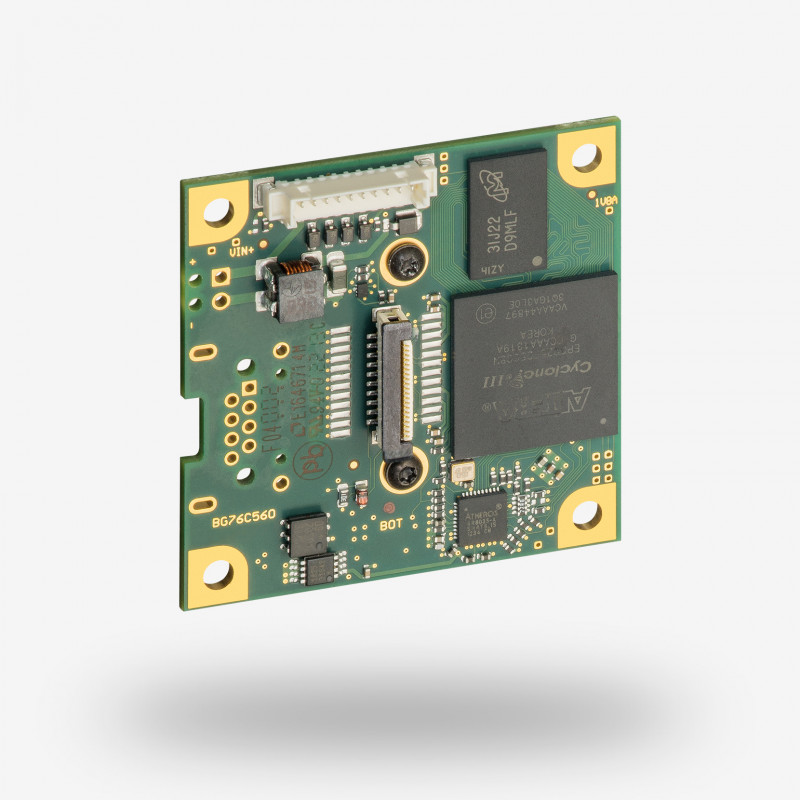

The motherboard including the sensor is separated from the daughterboard including the GigE interface by a flex ribbon cable. Both the flex ribbon cable and the daughterboard are optionally available. The UI-5481LE-MB is fitted with the 4.92 megapixel CMOS sensor (MT9P031STM). About half an inch in size, the sensor delivers a resolution of 2560 x 1920 pixels as well as rolling and global start shutter features. The sensor is extraordinarily sensitive and is a real megapixel CCD replacement.
The various shutter modes provide ideal parameters for every application to produce sharp, low-noise images.
Please note that a daugtherboard as well as a flex ribbon cable is essential for the functionality.
Item number |
|
---|---|
Name | UI-5481LE-MB |
Camera family | LE |
Interface | Ethernet |
Interface-Speed | 1.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | ON Semiconductor |
Frame rate @ resolution max. | 14.1 fps |
Resolution (h x v) | 2560 x 1920 |
Optical Area | 5.632 mm x 4.224 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/2.5" |
Resolution | 4.92 MPix |
Pixel size | 2.20 μm |
IP code | No |
Product Life Cycle | Series |
