UI-5482SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 15.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/2.5"
- Resolution
- 4.92 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5482SE-M_Rev_4.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/2.5", ON Semiconductor, 4.92 MPix, CMOS, 15.0 fps, MT9P031, 2560 x 1920

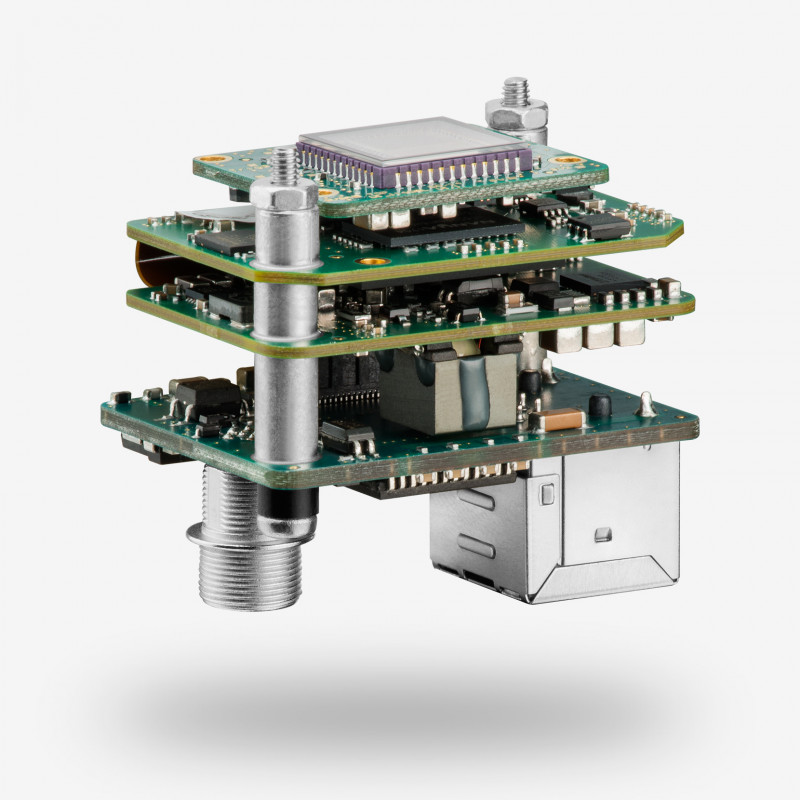

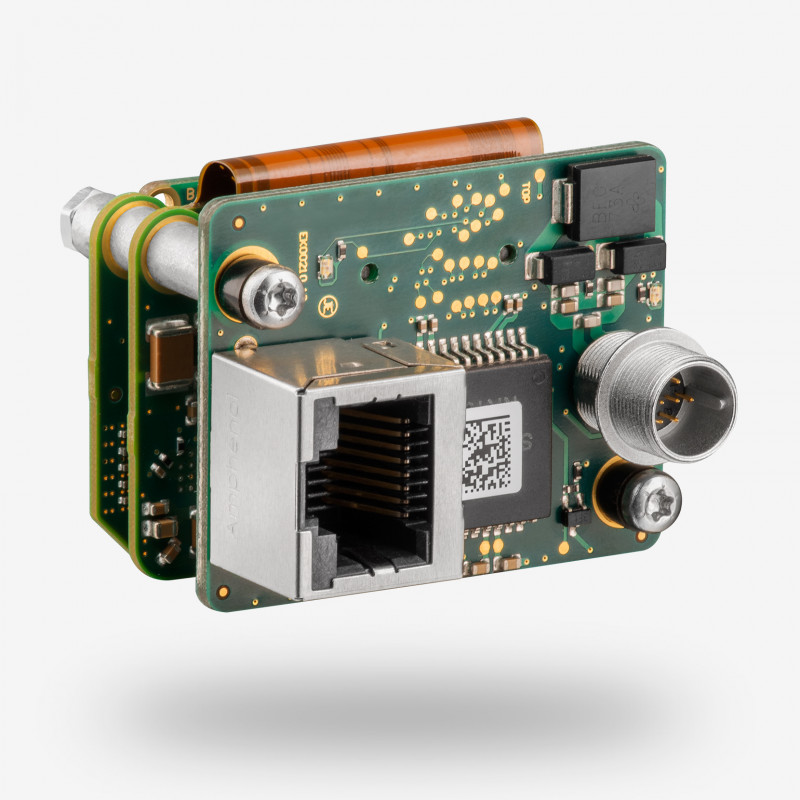

The UI-5482SE Rev. 4 GigE camera is equipped with the 4.92 MPix CMOS sensor (MT9P031STM). About 1/2.5" in size, the monochrome sensor delivers a resolution of 2560 x 1920 pixels as well as rolling and global start shutter features. The sensor is a true megapixel CCD alternative and offers excellent sensitivity at a very favorable price. The various shutter modes provide ideal parameters for every application to produce sharp, low-noise images.
This camera model will be supported beginning with IDS Software Suite 4.90.
| Item number |
|
|---|---|
| Name | UI-5482SE Rev. 4 |
| Camera family | SE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 15.0 fps |
| Resolution (h x v) | 2560 x 1920 |
| Optical Area | 5.632 mm x 4.224 mm |
| Shutter | Global Start Shutter, Rolling Shutter |
| Optical class | 1/2.5" |
| Resolution | 4.92 MPix |
| Pixel size | 2.20 μm |
| IP code | No |
| Product Life Cycle | Series |
