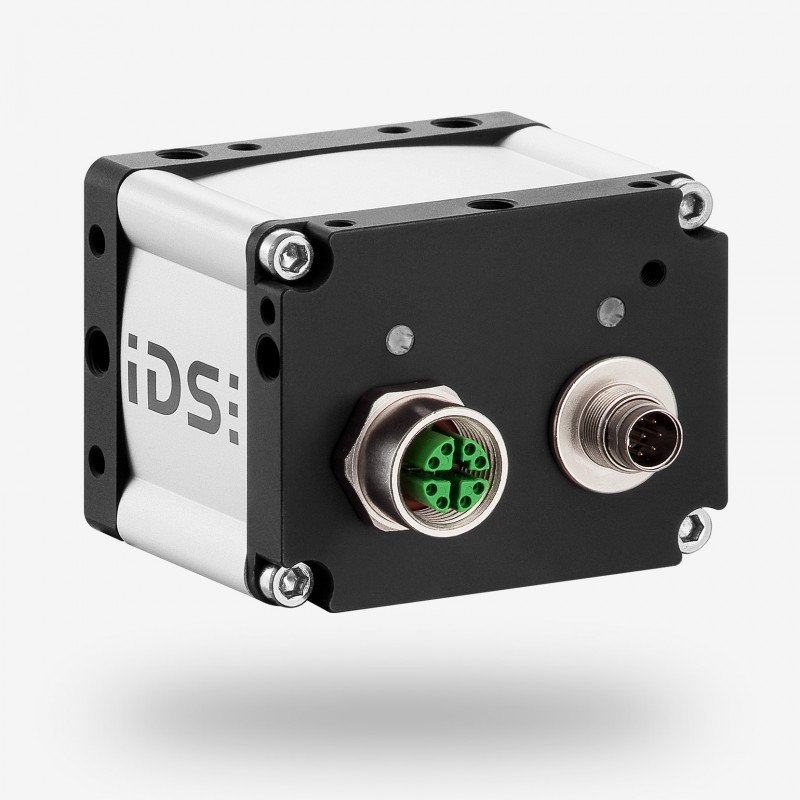

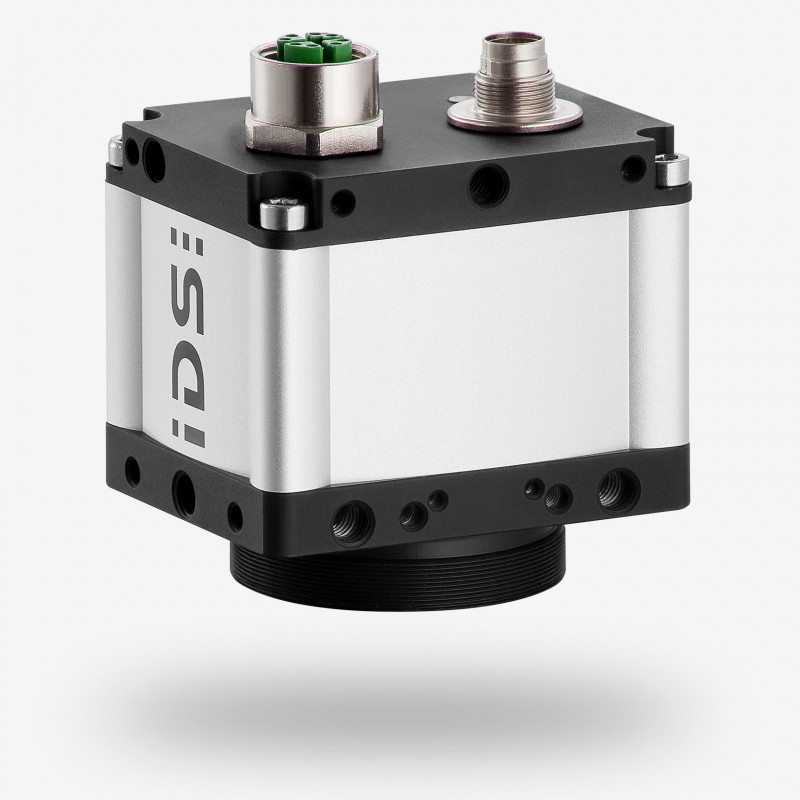

UI-5540RE PoE
- Camera family
- RE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 35.5 fps
- Shutter
- Rolling Shutter
- Optical class
- 1/2"
- Resolution
- 1.31 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5540RE-M-GL_PoE_Rev_2.pdf
- 소비자가
- 별도문의
uEye RE
Ethernet 1.0 Gbps, 1/2", ON Semiconductor, 1.31 MPix, CMOS, 35.5 fps, MT9M001, 1280 x 1024
The UI-5540RE PoE with the 1.3 megapixel CMOS sensor (MT9M001STM) from ON Semiconductor delivers the best price/performance ratio. Besides offering a megapixel resolution of 1280 x 1024 pixels, it also features horizontal and vertical subsampling modes for higher frame rates. The large pixels create an extremely good signal-to-noise ratio and therefore produce a high image dynamic.
The PoE version also provides two additional general purpose I/Os (GPIOs). The power supply is provided by the screw-on, dust proof and splash water proof M12 circular connector.
| Item number |
|
|---|---|
| Name | UI-5540RE PoE |
| Camera family | RE |
| Interface | Ethernet |
| Interface-Speed | 1.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | ON Semiconductor |
| Frame rate @ resolution max. | 35.5 fps |
| Resolution (h x v) | 1280 x 1024 |
| Optical Area | 6.656 mm x 5.325 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/2" |
| Resolution | 1.31 MPix |
| Pixel size | 5.20 μm |
| IP code | IP65/67 |
| Product Life Cycle | Series |
