UI-5860CP Rev. 2

Camera family
CP
Interface
Ethernet
Sensor type
CMOS
Frame / Line rate
53.0 fps
Shutter
Global Start Shutter, Rolling Shutter
Optical class
1/3"
Resolution
2.12 MPix
Mono / Color
Mono / Color
Data sheet 1
UI-5860CP-C-HQ_Rev_2.pdf
Data sheet 2
UI-5860CP-M-GL_Rev_2.pdf
소비자가
별도문의

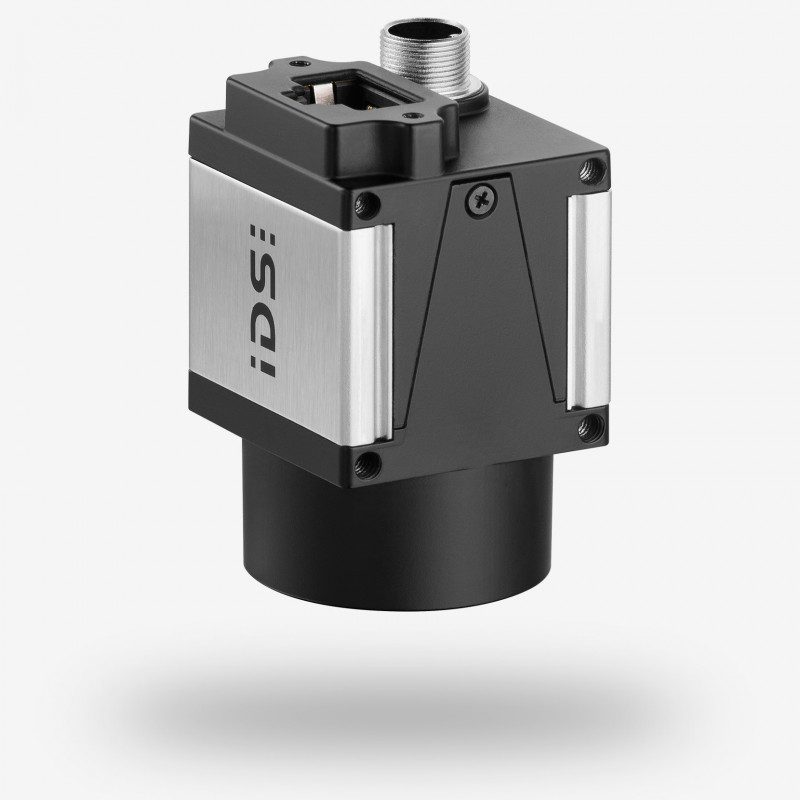

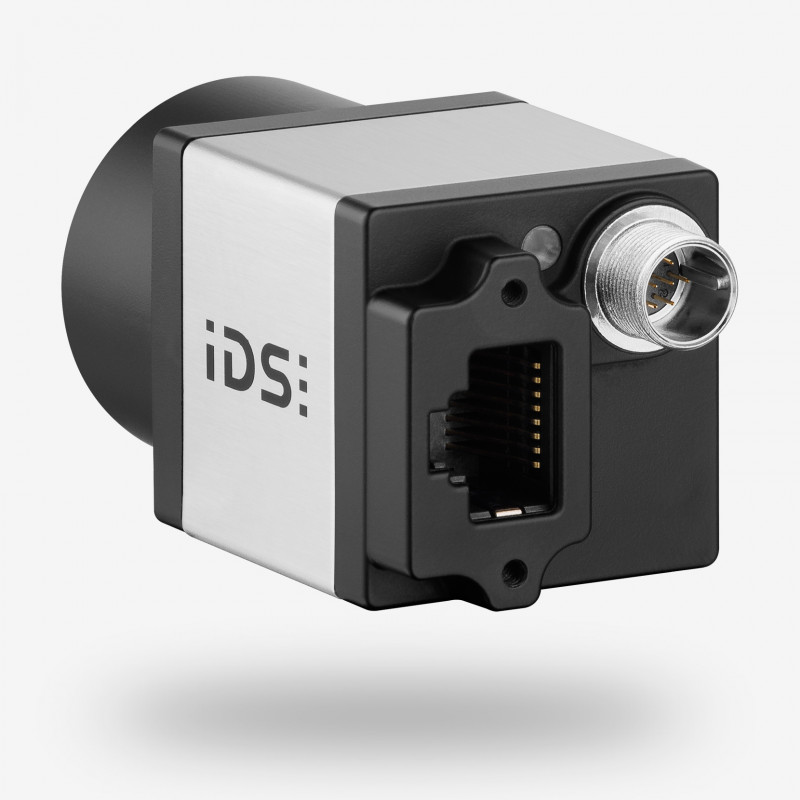

uEye CP Ethernet 1.0 Gbps, 1/3", Sony, 2.12 MPix, CMOS, 53.0 fps, IMX290, 1936 x 1096

This cost-optimised, fast rolling shutter IMX290 sensor from Sony's STARVIS series is now also available in our UI-5860CP Rev. 2 industrial camera. The CMOS camera offers truly impressive image quality with clean color separation for a faithful rendering of subjects even in extremely poor or varying lighting conditions.


It offers the popular full HD resolution for visualisation applications, long exposure (120 seconds), and extremely high IR sensitivity. The sensor's small visual 1/3" format is ideal for cost-effective lenses.





Item number
  • UI-5860CP-M-GL Rev.2: AB02039
  • UI-5860CP-C-HQ Rev.2: AB02038
Name UI-5860CP Rev. 2
Camera family CP
Interface Ethernet
Interface-Speed 1.00 Gbps
Sensor type CMOS
Sensor manufacturer Sony
Frame rate @ resolution max. 53.0 fps
Resolution (h x v) 1936 x 1096
Optical Area 5.610 mm x 3.175 mm
Shutter Global Start Shutter, Rolling Shutter
Optical class 1/3"
Resolution 2.12 MPix
Pixel size 2.90 μm
IP code IP30
Product Life Cycle Series
