UI-5862SE Rev. 4
- Camera family
- SE
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 53.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/3"
- Resolution
- 2.12 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5862SE-C_Rev_4.pdf
- Data sheet 2
- UI-5862SE-M_Rev_4.pdf
- 소비자가
- 별도문의
uEye SE
Ethernet 1.0 Gbps, 1/3", Sony, 2.12 MPix, CMOS, 53.0 fps, IMX290, 1936 x 1096
This cost-optimized, fast rolling shutter IMX290 sensor from Sony's STARVIS series is now also available in our UI-5862SE Rev. 4 industrial camera. The CMOS camera offers truly impressive image quality with clean color separation for a faithful rendering of subjects even in extremely poor or varying lighting conditions. It offers the popular full HD resolution for visualization applications, long exposure (120 seconds), and extremely high IR sensitivity.
The sensor's small visual 1/2.8" format is ideal for cost-effective lenses.

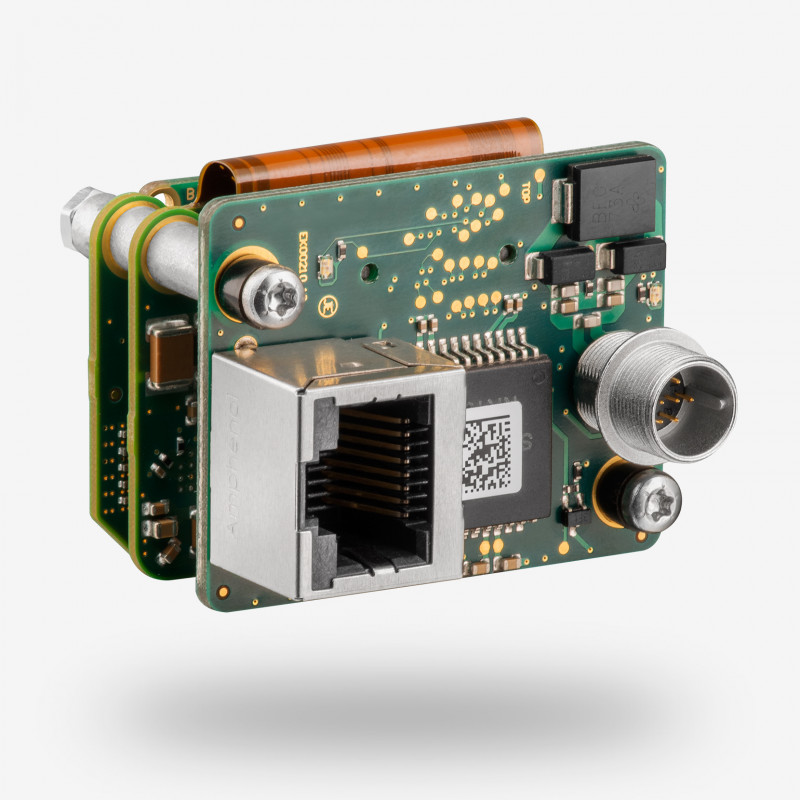

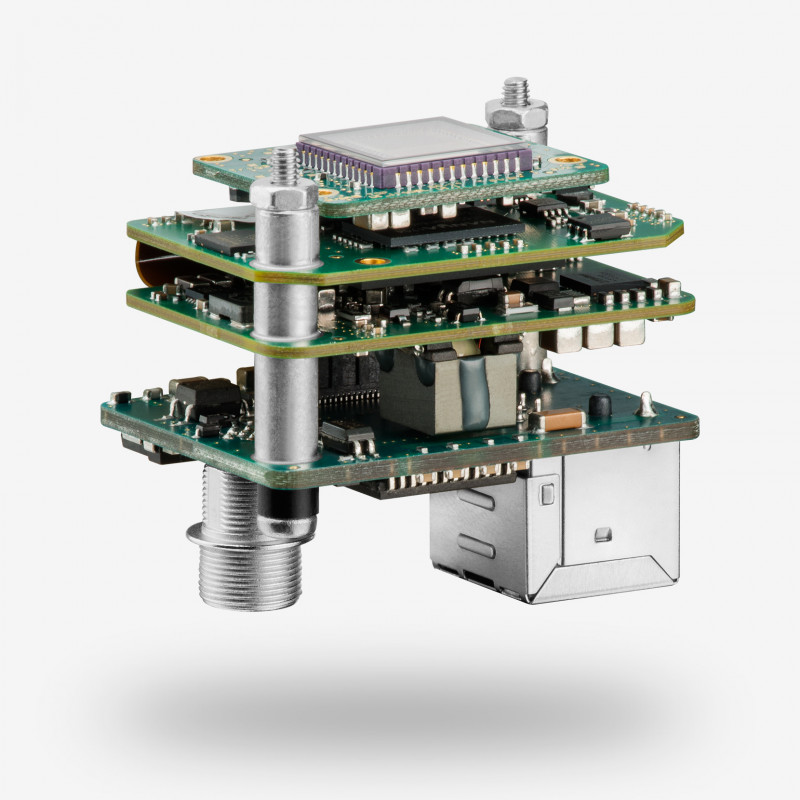

The UI-5862SE Rev.4 board level camera without lens holder is available in a color or monochrome version.
Item number |
|
---|---|
Name | UI-5862SE Rev. 4 |
Camera family | SE |
Interface | Ethernet |
Interface-Speed | 1.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 53.0 fps |
Resolution (h x v) | 1936 x 1096 |
Optical Area | 5.610 mm x 3.175 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/3" |
Resolution | 2.12 MPix |
Pixel size | 2.90 μm |
IP code | No |
Product Life Cycle | Series |
