UI-5880FA
- Camera family
- FA
- Interface
- Ethernet
- Sensor type
- CMOS
- Frame / Line rate
- 17.0 fps
- Shutter
- Global Start Shutter, Rolling Shutter
- Optical class
- 1/1.8"
- Resolution
- 6.41 MPix
- Mono / Color
- Mono / Color
- Data sheet 1
- UI-5880FA-C-HQ.pdf
- Data sheet 2
- UI-5880FA-M-GL.pdf
- 소비자가
- 별도문의

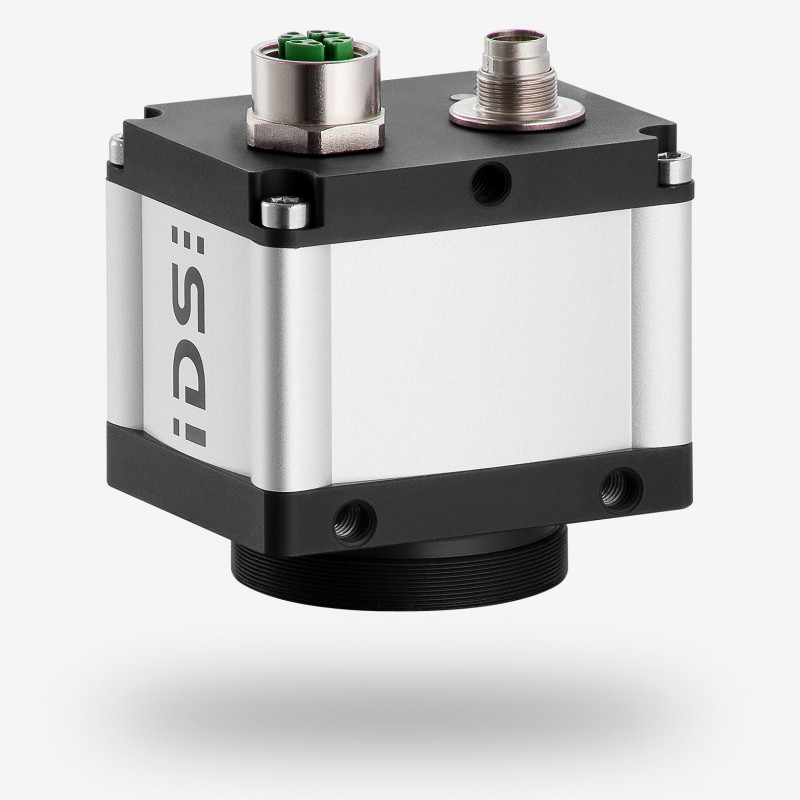

The UI-5880FA GigE CMOS camera with the 1/1.8" rolling shutter CMOS sensor Sony IMX178 offers an extremely high resolution of 6.4 MP (3088 x 2076 px, aspect ratio 3:2), which is ideal for visualization tasks in microscopy or as a cost-conscious option for intelligent traffic systems (ITS). The sensor from the Sony STARVIS series features BSI technology ("back-side-illumination") and is one of the most light-sensitive sensors with a low dark current close to the SCMOS range (Scientific CMOS). It can be exposed for up to 120 seconds and also produces impressive results even in extremely low starlight.
Together with our GigE industrial cameras, the Sony IMX178 delivers frame rates of up to 18 fps at full resolution. Thanks to the 1/1.8" sensor size, a wide selection of C-mount lenses is available for the UI-5880FA GigE camera model.

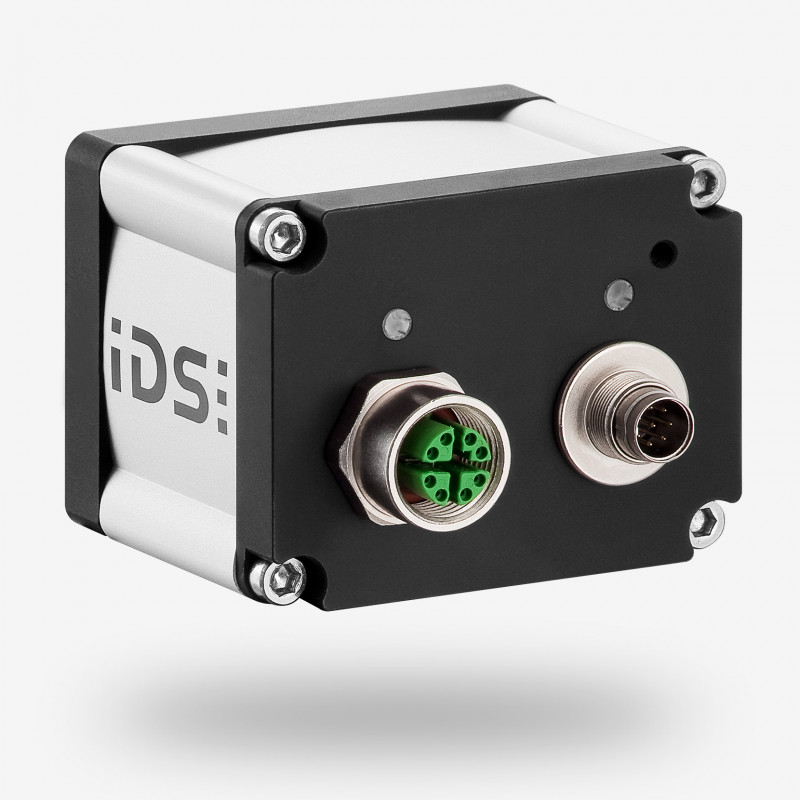

The UI-5880FA also provides two additional general purpose I/Os (GPIOs). The power supply is provided by the screw-on, dust proof and splash water proof M12 circular connector.
Item number |
|
---|---|
Name | UI-5880FA |
Camera family | FA |
Interface | Ethernet |
Interface-Speed | 1.00 Gbps |
Sensor type | CMOS |
Sensor manufacturer | Sony |
Frame rate @ resolution max. | 17.0 fps |
Resolution (h x v) | 3088 x 2076 |
Optical Area | 7.410 mm x 4.980 mm |
Shutter | Global Start Shutter, Rolling Shutter |
Optical class | 1/1.8" |
Resolution | 6.41 MPix |
Pixel size | 2.40 μm |
IP code | IP65/67 |
Product Life Cycle | Series |
